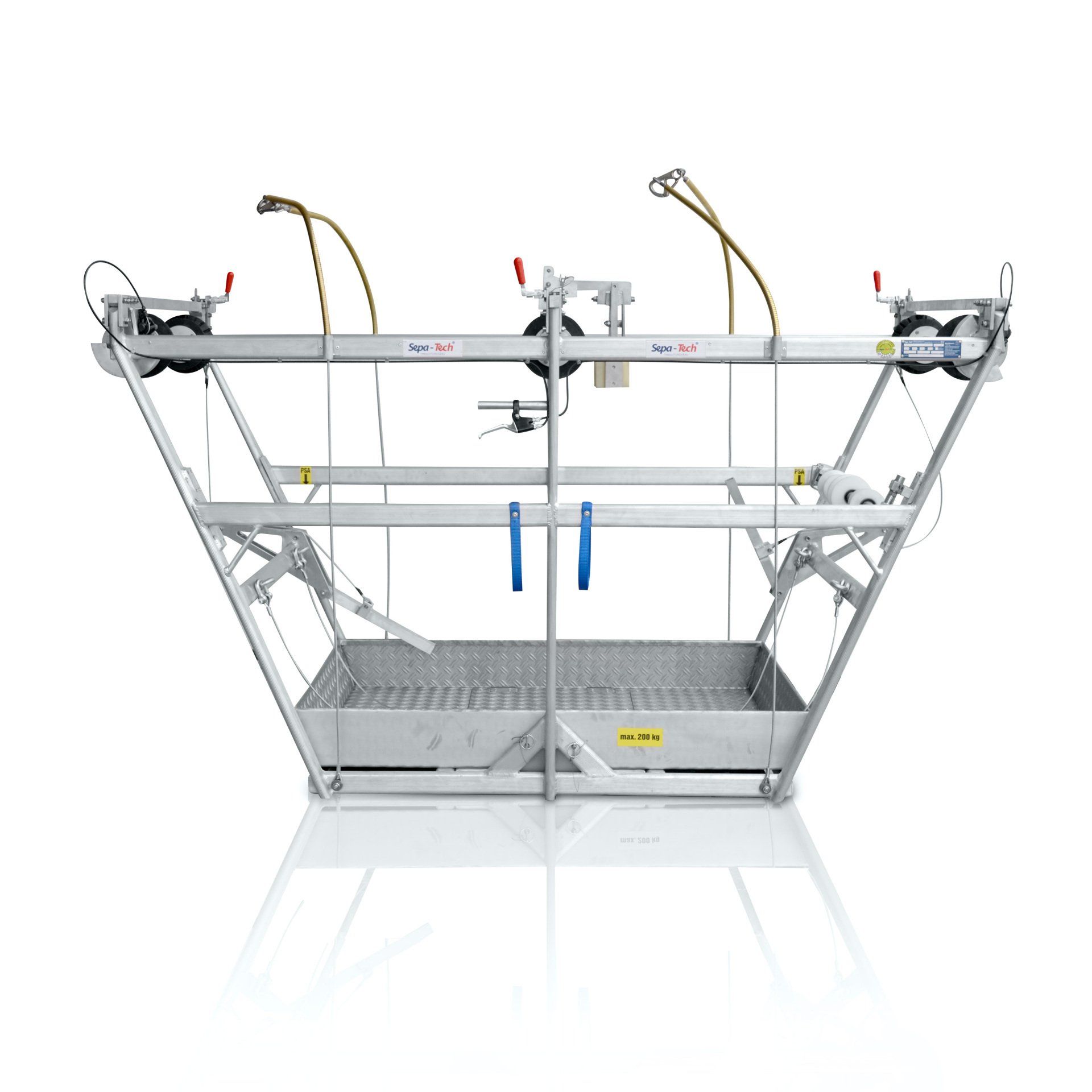

Cable trolley without motor (3-axis)

Cable trolley without motor (3-axis)

Technical data & product details

1120/3

  • Outer dimension (L x W x H):

    2300 x 1100 x 1500mm

  • Unladen weight:

    98 kg

  • Payload

    200 kg

  • Inside dimension:

    830 x 1050 mm

  • Max. Number of persons:

    1 Person

  • Rope diameter:

    19 up to 40 mm

  • Single rope:

    Mobile

  • Bundle of 2 horizontally:

    Rope spacing: 400,500,600 mm

  • Bundle of 2 vertical:

    Rope spacing:

    400 mm, 500 mm

  • Bundle of 3:

    Rope spacing:

    400 mm, 500 mm

  • Bundle of 4:

    Rope spacing:

    400 mm, 500 mm

  • Axles:

    2 Axles each with solid2 rubber profile wheels

    2 Additional axles with high flank (centre roller)

  • Brakes:

    2 Disc brakes on the drive axles Crank2 brakes

  • Product features

    • Line vehicle with mechanical roller axles and welded aluminium profiles

    • Pulling aid on the outer axles, facilitates hooking in the axles
