Catwalk for Hanging Ladder
Catwalk for Hanging Ladder
Technical data & product details
LS-H-240-160-4000
| Length (mm) | 4000 |
|---|---|
| Width (mm) | 340 |
| Tread (width in mm) | 240 |
| Construction height (mm) | 160 |
| Pocket opening (mm) | 30 |
| Payload (kg) | 250 |
| Own weight | 18 |
LS-H-240-160-5000
| Length (mm) | 5000 |
|---|---|
| Width (mm) | 340 |
| Tread (width in mm) | 240 |
| Construction height (mm) | 160 |
| Pocket opening (mm) | 30 |
| Payload (kg) | 250 |
| Own weight | 22 |
LS-H-240-160-6000
| Length (mm) | 6000 |
|---|---|
| Width (mm) | 340 |
| Tread (width in mm) | 240 |
| Construction height (mm) | 160 |
| Pocket opening (mm) | 30 |
| Payload (kg) | 200 |
| Own weight | 26 |
Catwalk for
hanging ladder
Product features
- Construction: aluminium tube with playpen and integrated safety rope
- For horizontal use on the mast

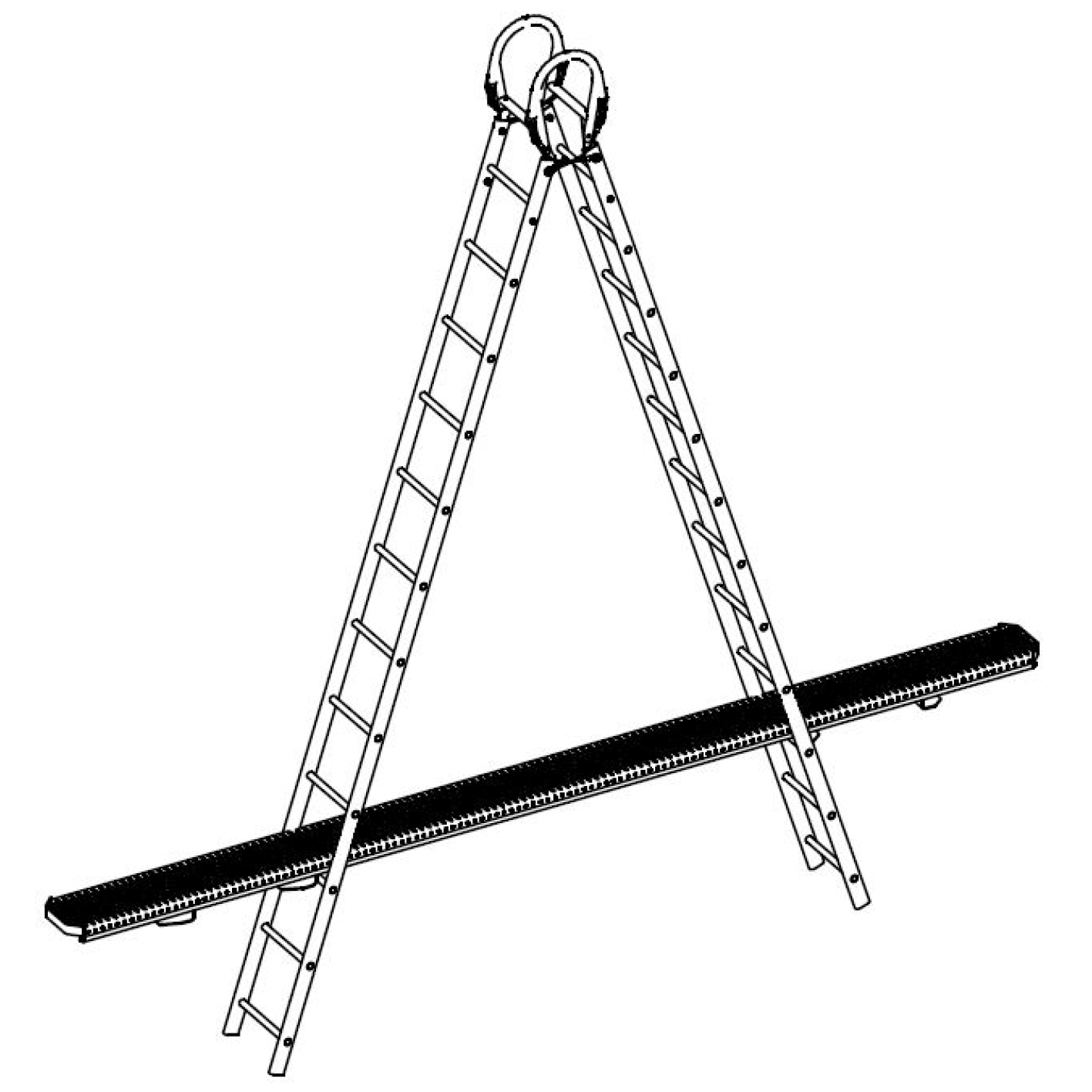

- For hanging in suspended ladders2 (A-shape)
- High step and grip safety due to aluminium structural profile
- High stability due to 2-spar construction
- 4 Sprout pockets
- Pre-tensioned safety rope on both sides with safety bolt
