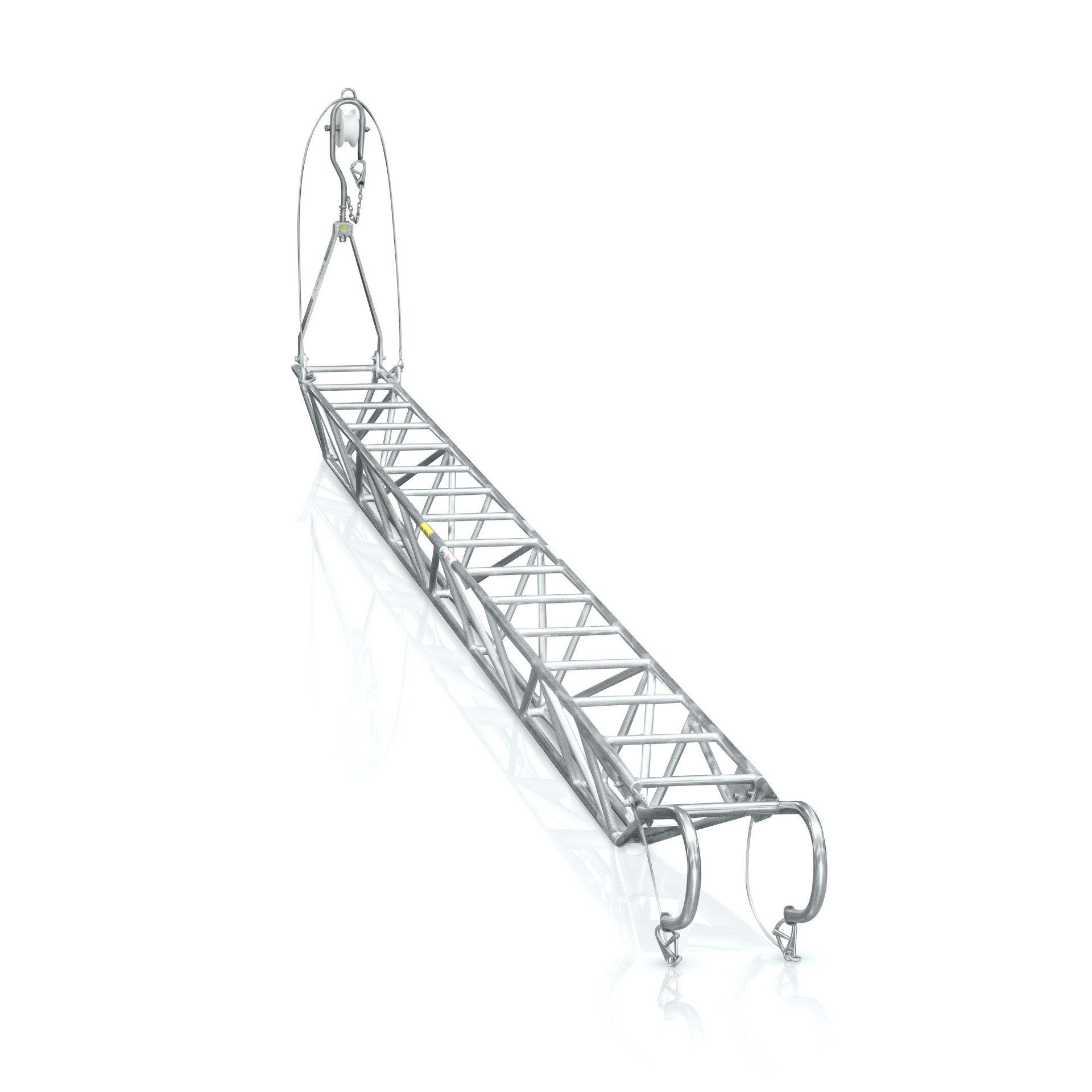

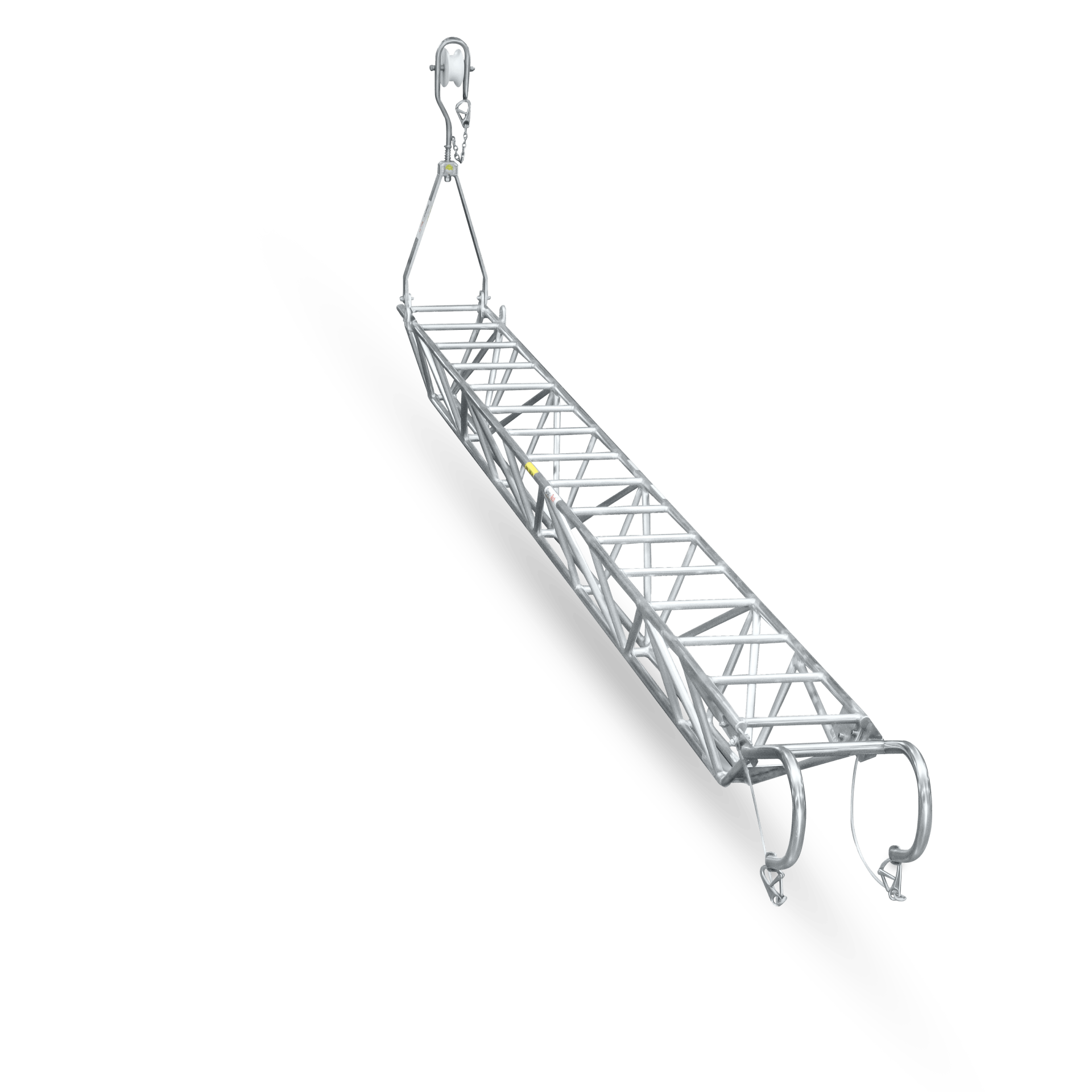

Triangular stage
Triangular stage
Technical data & product details
DEB-355-380-4000
| Length (mm) | 4000 |
|---|---|
| Width (mm) | 355 |
| Construction height (mm) | 380 |
| Payload (kg) | 275 |
| Own weight (kg) | 27 |
DEB-355-380-5000
| Length (mm) | 5000 |
|---|---|
| Width (mm) | 355 |
| Construction height (mm) | 380 |
| Payload (kg) | 275 |
| Own weight (kg) | 30 |
LS-H-355-380-6000
| Length (mm) | 6000 |
|---|---|
| Width (mm) | 355 |
| Construction height (mm) | 380 |
| Payload (kg) | 250 |
| Own weight (kg) | 33 |
LS-H-355-380-7000
| Length (mm) | 7000 |
|---|---|
| Width (mm) | 355 |
| Construction height (mm) | 380 |
| Payload (kg) | 250 |
| Own weight (kg) | 37 |

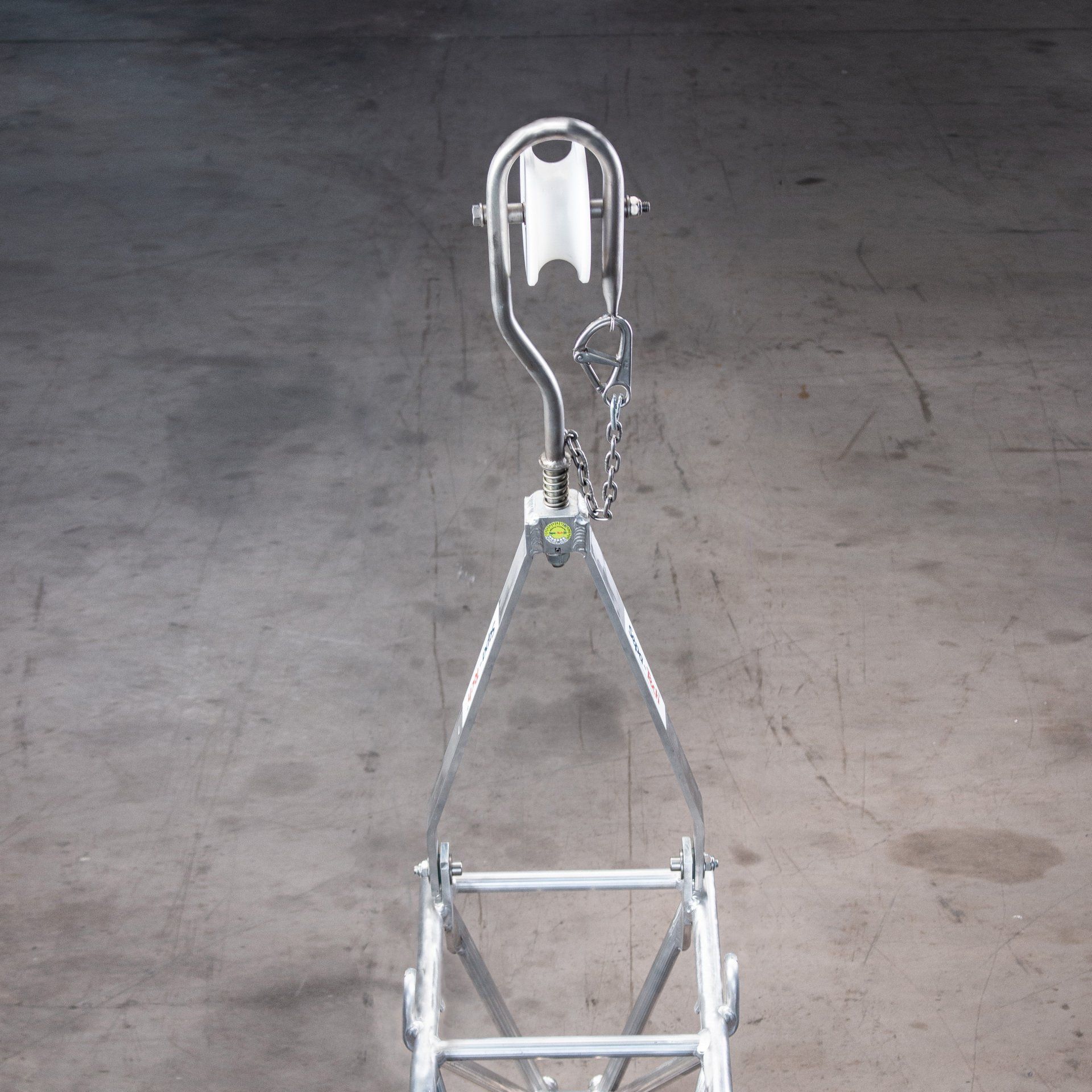

Hangers
Rotatable with plastic roller and safety rope
Product features
- For horizontal use on the guyed mast
- Lightweight round aluminium profile
- High stability due to trapezoidal construction
- Easy transport due to foldable, rotatable ladder rope bracket
- Variable hooking into the top of the mast due to welded eyelets
