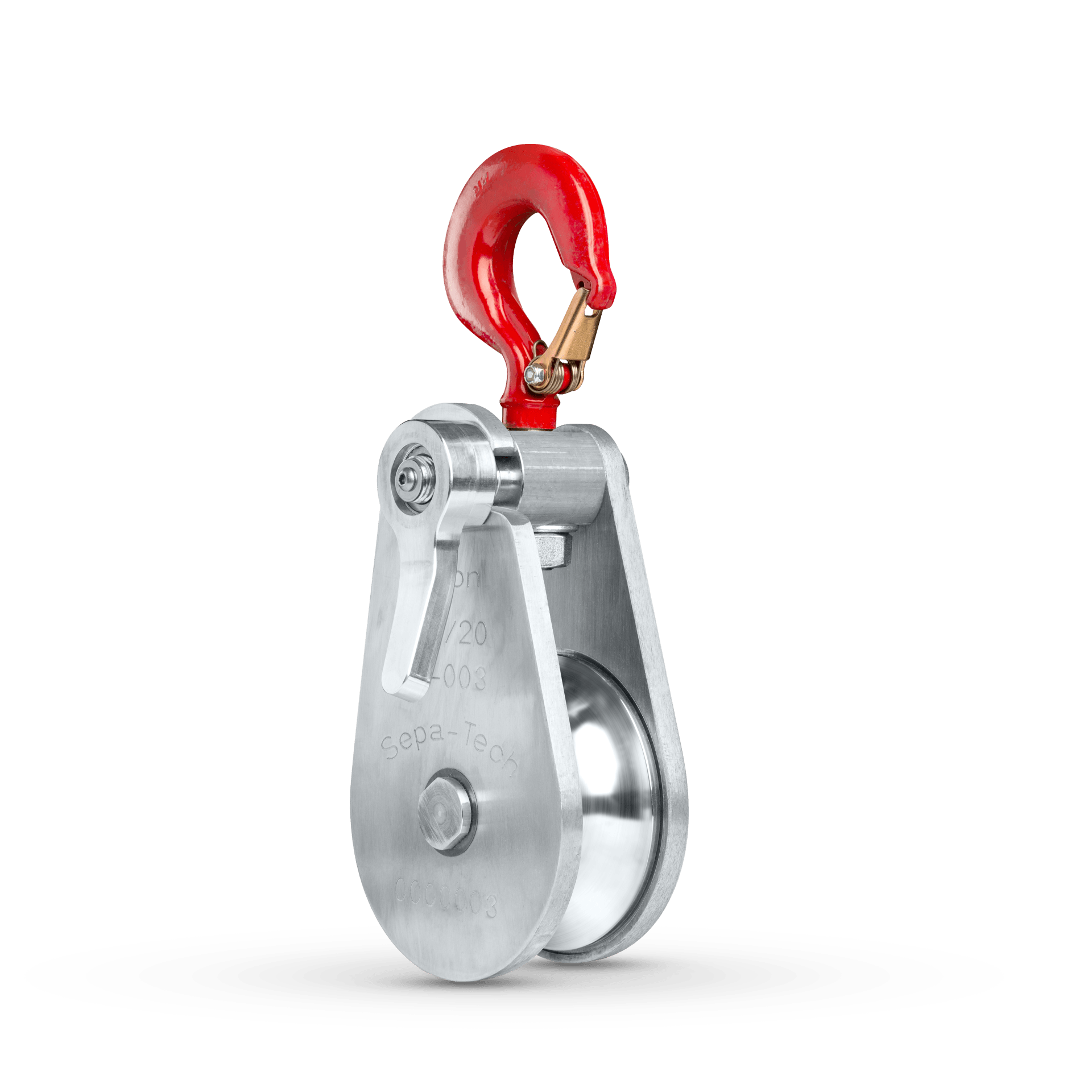

Alu- Rope Folding Sheave Blocks
Alu- Rope Folding Sheave Blocks
Technical data & product details

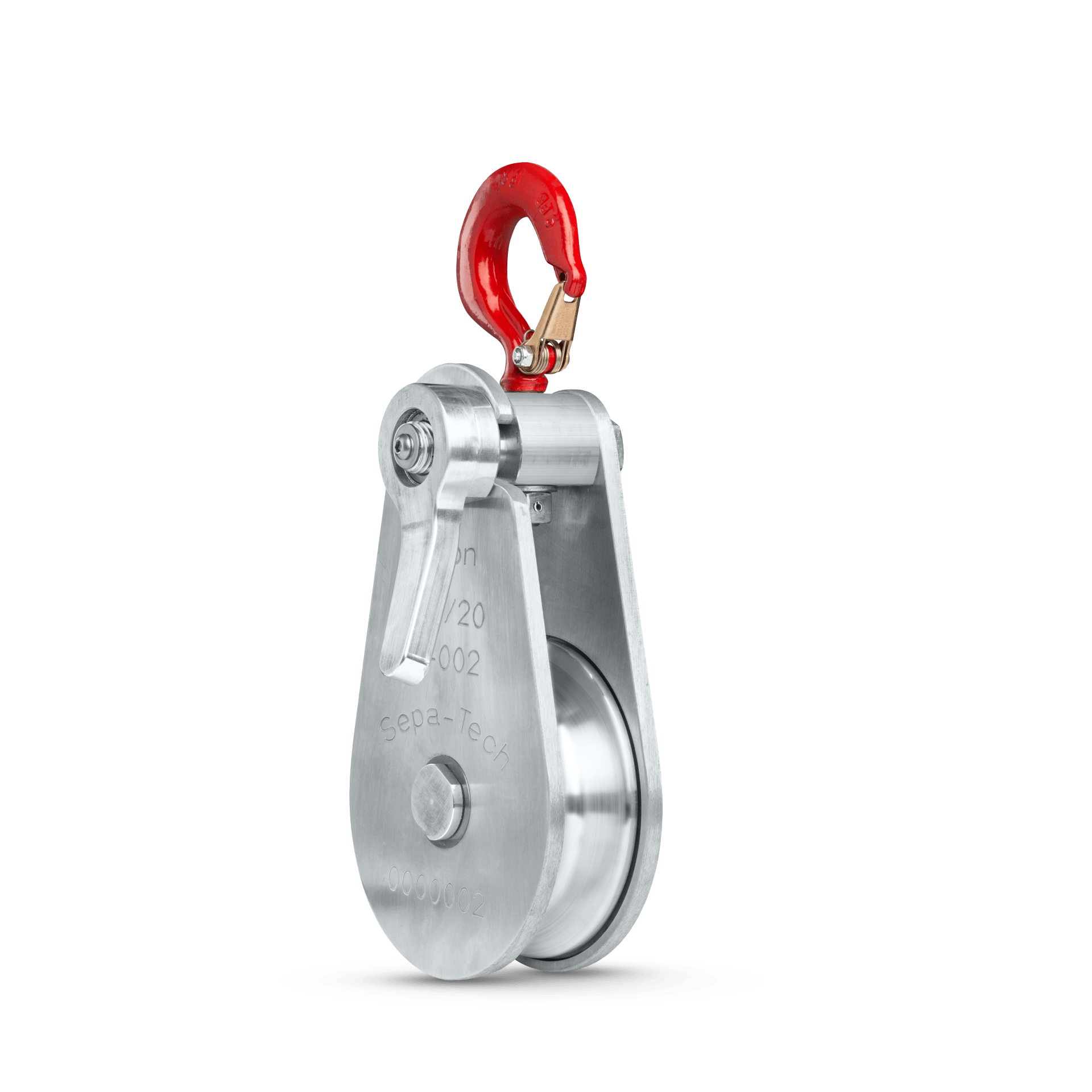

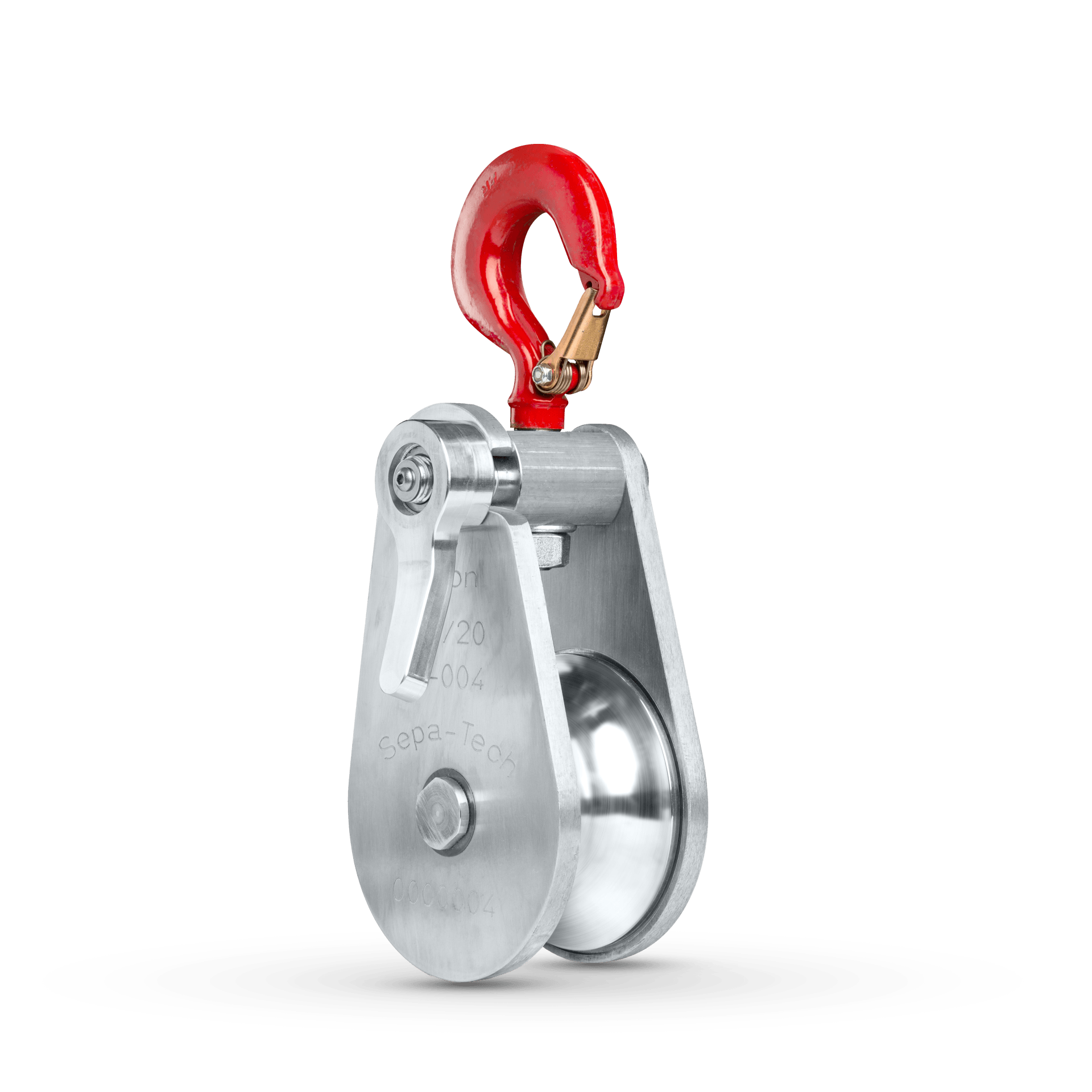

| Artikel-Nr.: | AS-KR-500-X | AS-KR-1000-X | AS-KR-3000-X | AS-KR-B-3000-X | AS-KR-D-3000-X |
|---|---|---|---|---|---|
| A (mm) | 230 | 330 | 350 | 350 | 350 |
| B (mm) | 110 | 130 | 140 | 140 | 150 |
| C (mm) | 50 | 92 | 92 | 92 | 92 |
| D (mm) | 30 | 30 | 30 | 50 | 16 |
| Pulley (X) | A = Aluminium | A = Aluminium | A = Aluminium | A = Aluminium | A = Aluminium |
| K = Plastic | K = Plastic | K = Plastic | K = Plastic | K = Plastic | |
| Payload (Kg) | 500 | 1000 | 3000 | 3000 | 3000 |
| Own weight (kg) | 1 Aluminium | 3 Aluminium | 4,3 Aluminium | 4,8 Aluminium | 4,8 Aluminium |
| 0,9 Plastic | 2,6 Plastic | 3,9 Plastic | 4,2 Plastic | 4,2 Plastic |
| Artikel-Nr.: | AS-KR-G-3000 | AS-KR-5000 | AS-KR-D-5000 | AS-KR-8000 | AS-KR-10000 |
|---|---|---|---|---|---|
| A (mm) | 500 | 560 | 430 | 600 | 600 |
| B (mm) | 150 | 180 | 180 | 200 | 220 |
| C (mm) | 210 | 210 | 74 | 210 | 210 |
| D (mm) | 42 | 42 | 16 | 42 | 42 |
| Pulley (X) | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium |
| Payload (Kg) | 3000 | 5000 | 5000 | 8000 | 10000 |
| Own weight (kg) | 9,8 | 13,6 | 7,9 | 18,1 | 23,4 |
Plastic roll
Aluminium roll
Optionally all excavation pockets are available with rubber insert

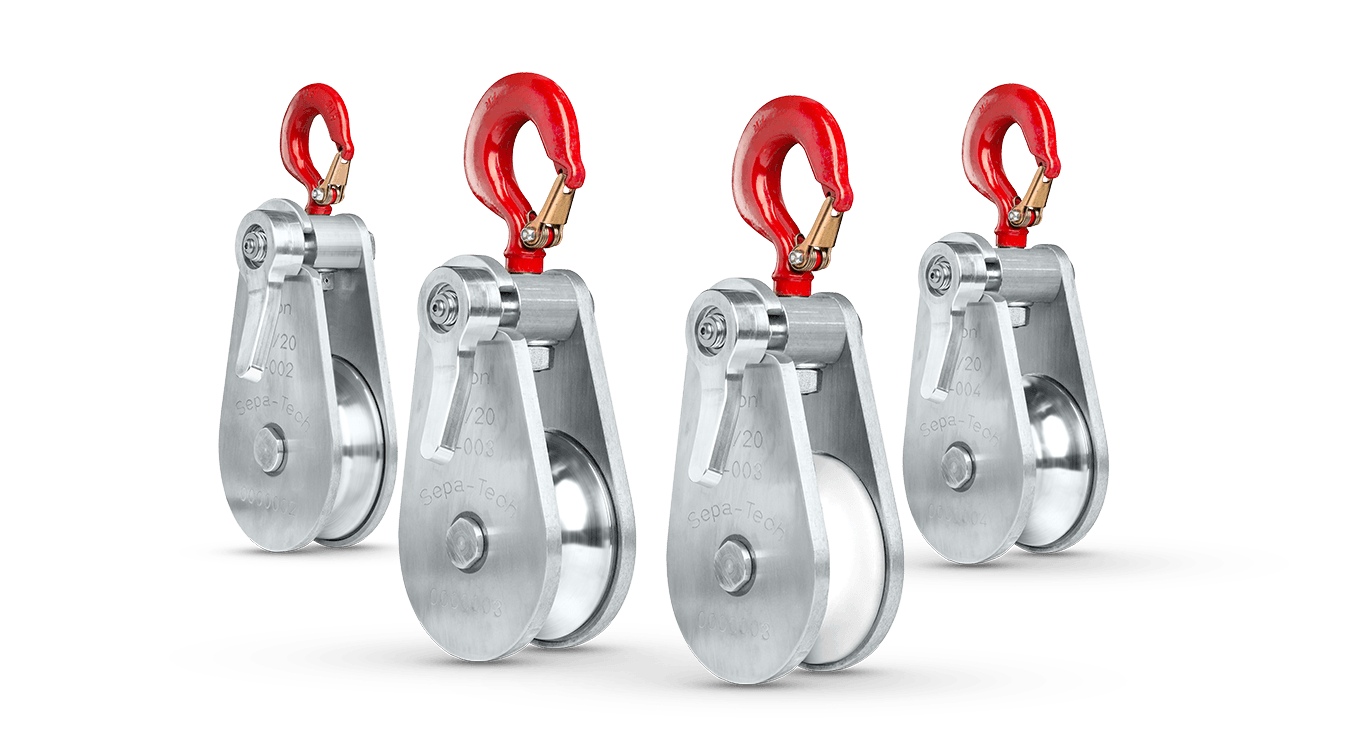

Product features
- Safety hook
- Castors embedded in the sides of the cheeks
- The weight to be lifted must not exceed 1/2 of the hook load.
