Working platforms
Working platforms
Technical data & product details
GEB-120-70
| Artikel-Nr.: | GEB-120-70-3000 | GEB-120-70-4000 | GEB-120-70-5000 | GEB-120-70-6000 | GEB-120-70-7000 |
|---|---|---|---|---|---|
| Length (mm) | 3000 | 4000 | 5000 | 6000 | 7000 |
| Width (mm) | 120 | 120 | 120 | 120 | 120 |
| Height (mm) | 70 | 70 | 70 | 70 | 70 |
| Payload (kg) | 200 | 200 | 200 | 200 | 200 |
| Own weight (kg) | - | - | - | - | - |
GEB-180-70
| Artikel-Nr.: | GEB-180-70-3000 | GEB-180-70-4000 | GEB-70-100-5000 | GEB-180-70-6000 | GEB-180-70-7000 |
|---|---|---|---|---|---|
| Length (mm) | 3000 | 4000 | 5000 | 6000 | 7000 |
| Width (mm) | 180 | 180 | 180 | 180 | 180 |
| Height (mm) | 70 | 70 | 70 | 70 | 70 |
| Payload (kg) | 200 | 200 | 200 | 200 | 200 |
| Own weight (kg) | - | - | - | - | - |
GEB-240-70
| Artikel-Nr.: | GEB-240-70-3000 | GEB-240-70-4000 | GEB-240-70-5000 | GEB-240-70-6000 | GEB-240-70-7000 |
|---|---|---|---|---|---|
| Length (mm) | 3000 | 4000 | 5000 | 6000 | 7000 |
| Width (mm) | 240 | 240 | 240 | 240 | 240 |
| Height (mm) | 70 | 70 | 70 | 70 | 70 |
| Payload (kg) | 200 | 200 | 200 | 200 | 200 |
| Own weight (kg) | - | - | - | - | - |
Increased safety thanks to the aluminium structure
profile on the running surface

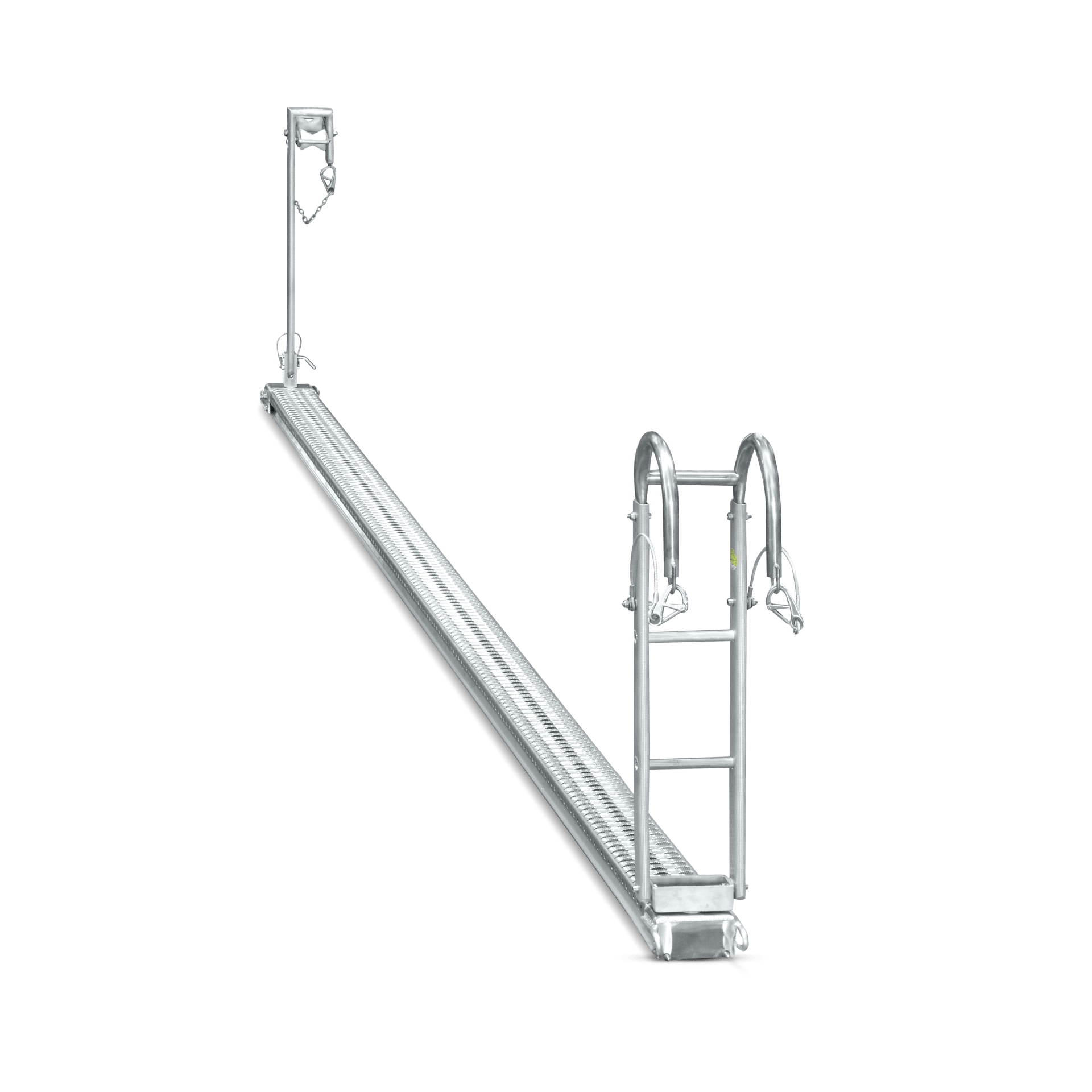

Product features
- Made of high quality aluminium profiles.
- Aluminium tread Width or 120,180mm240
- Mast side: Small ladder with stainless steel double bracket, rotatable and foldable
- Rope side: aluminium hangers rotatable and foldable
- with integrated plastic single or double castor rocker
- Hanger & ladder with safety rope
