Loop working platform
Technical data & product details
SFB-410-310-14000
| Length (mm) | 14000 |
|---|---|
| Elements | 4 Part |
| Slings | 10 Piece |
| Payload (kg) | 800 |
| Total weight (kg) | 204 |

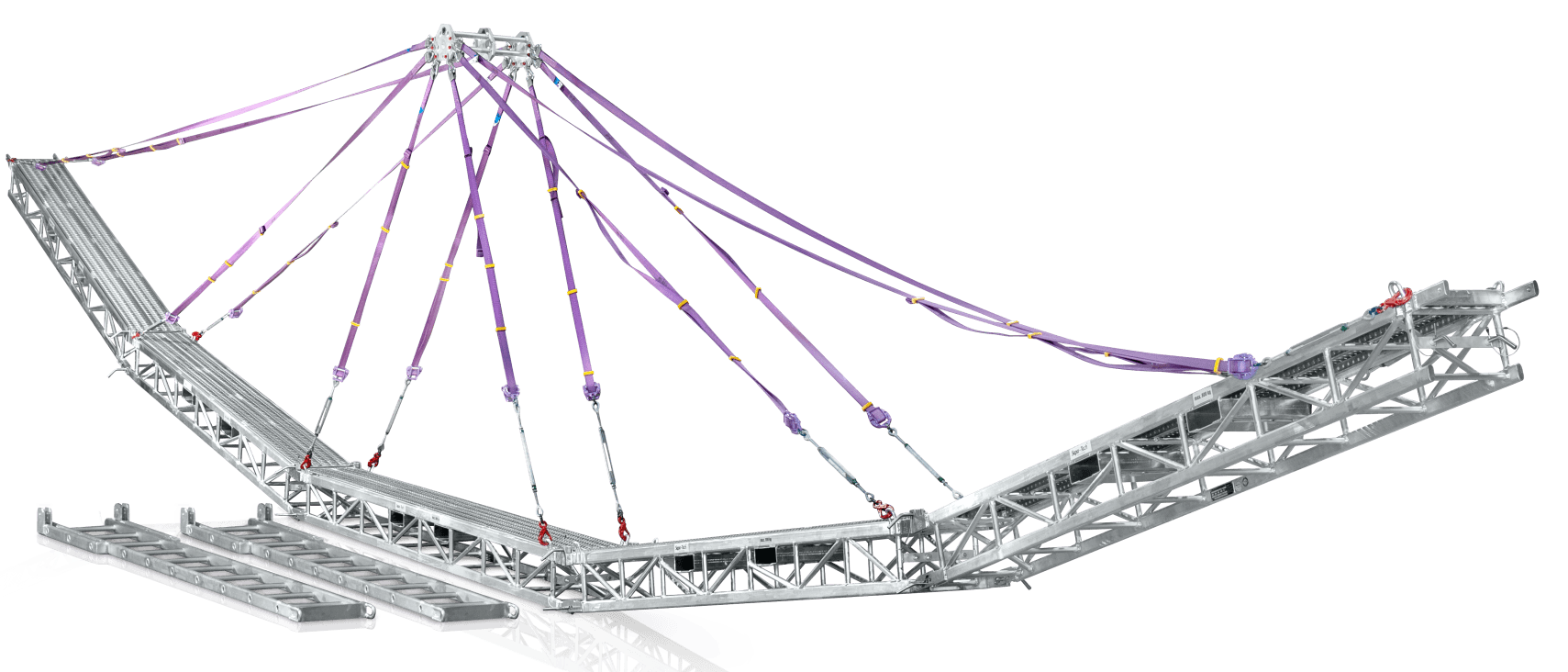

SFB-410-310-18000
| Length (mm) | 18000 |
|---|---|
| Elements | 5 Part |
| Slings | 12 Piece |
| Payload (kg) | 800 |
| Total weight (kg) | 260 |
SFB-410-310-22000
| Length (mm) | 22000 |
|---|---|
| Elements | 6 Part |
| Slings | 14 Piece |
| Payload (kg) | 800 |
| Total weight (kg) | 314 |

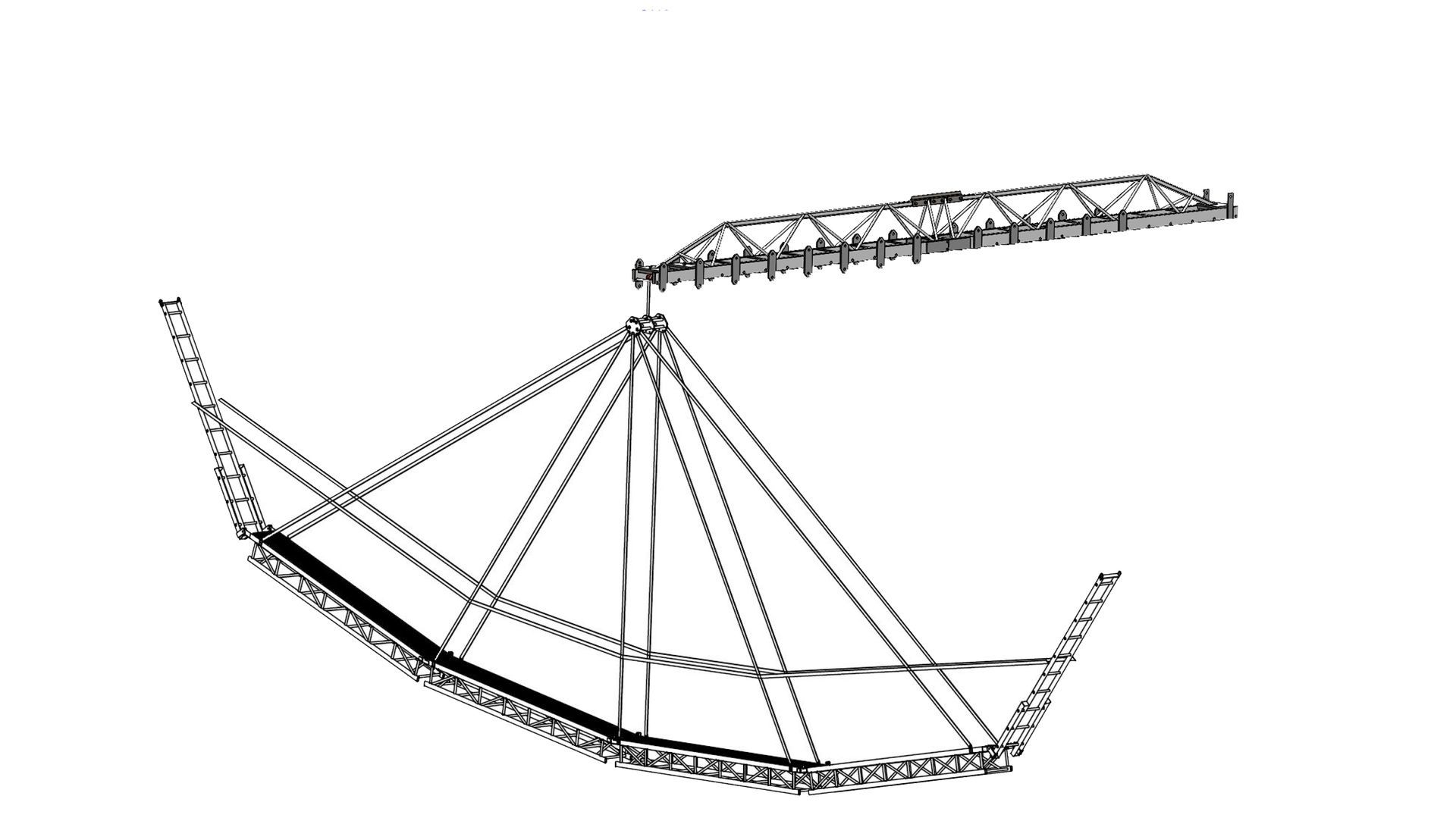

Boom for loop working platform
| Article Nr. | SFB - Galgen |
|---|---|
| Width (mm) | 300 |
| Heigth (mm) | 520 |
| Length (mm) | 8000 |
| Payload (kg) | 800 kg at 4 metre outreach |
| 140 |
Product features
- For extending the crossbar when the guyed mast is at a steep angle
- Can be locked in various positions
- Maximum payload of 800 kg
- Brace end against mast
Product features
- The platform elements are each secured with 4 socket bolts
- Pre-assembly can be done on the floor (5 pre-adjustment possibilities in 5°-steps)

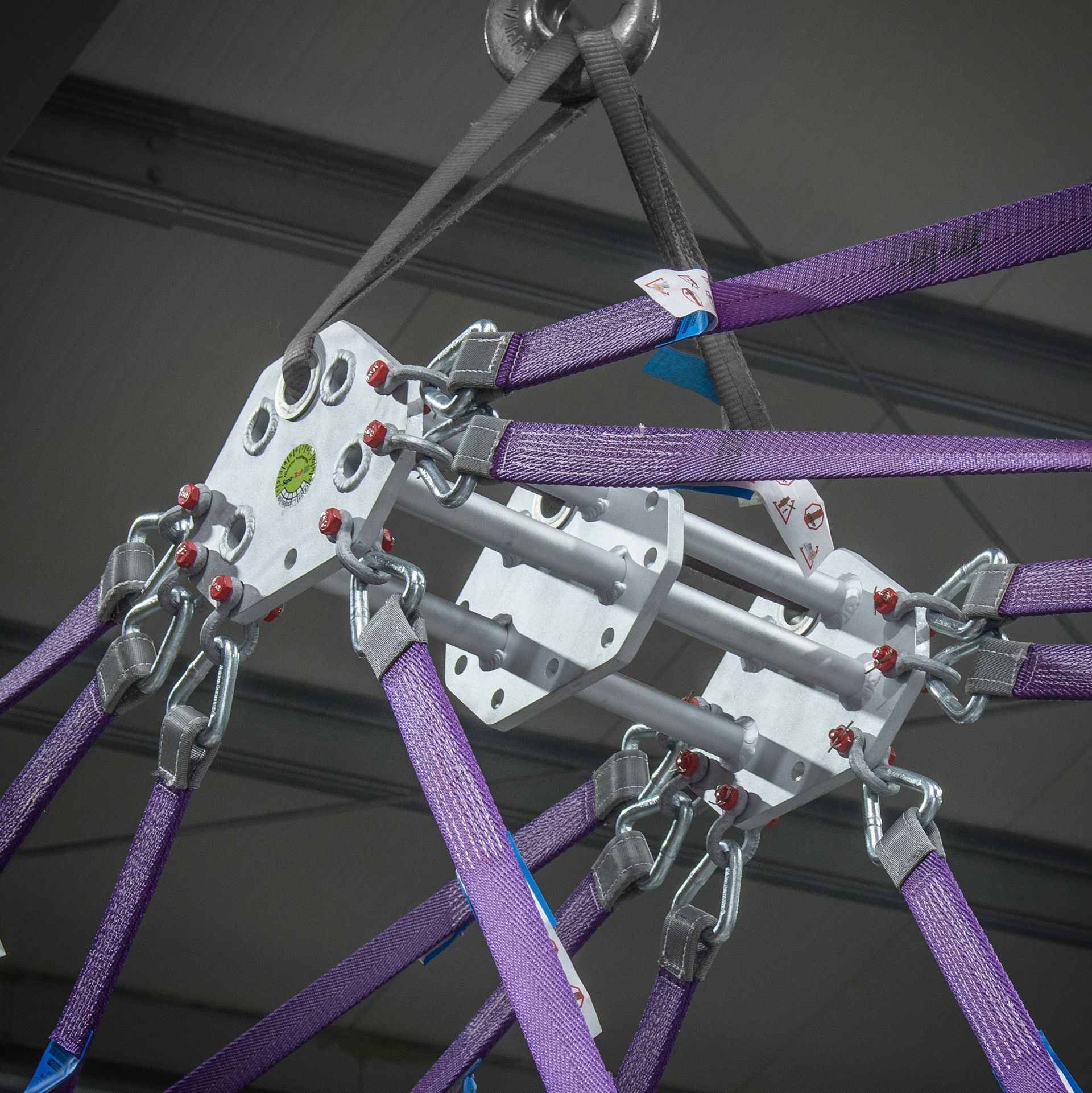

- The pre-assembled platform suspension with lifting straps is supplied in a transport box
- For horizontal use on the guyed mast
- High slip resistance due to aluminium structural profile & extra wide footprint
- Lightweight, handy aluminium construction
- High stability due to 4-bar construction
- Angle between 2 segments adjustable up to 10
- Automatically locking plug-in bolts with steel safety rope
- Welded brackets for plug-in bolts
- Safe access via 2 folding ladders (max. 3 m)
- Markings for adjusting at 5 angles
