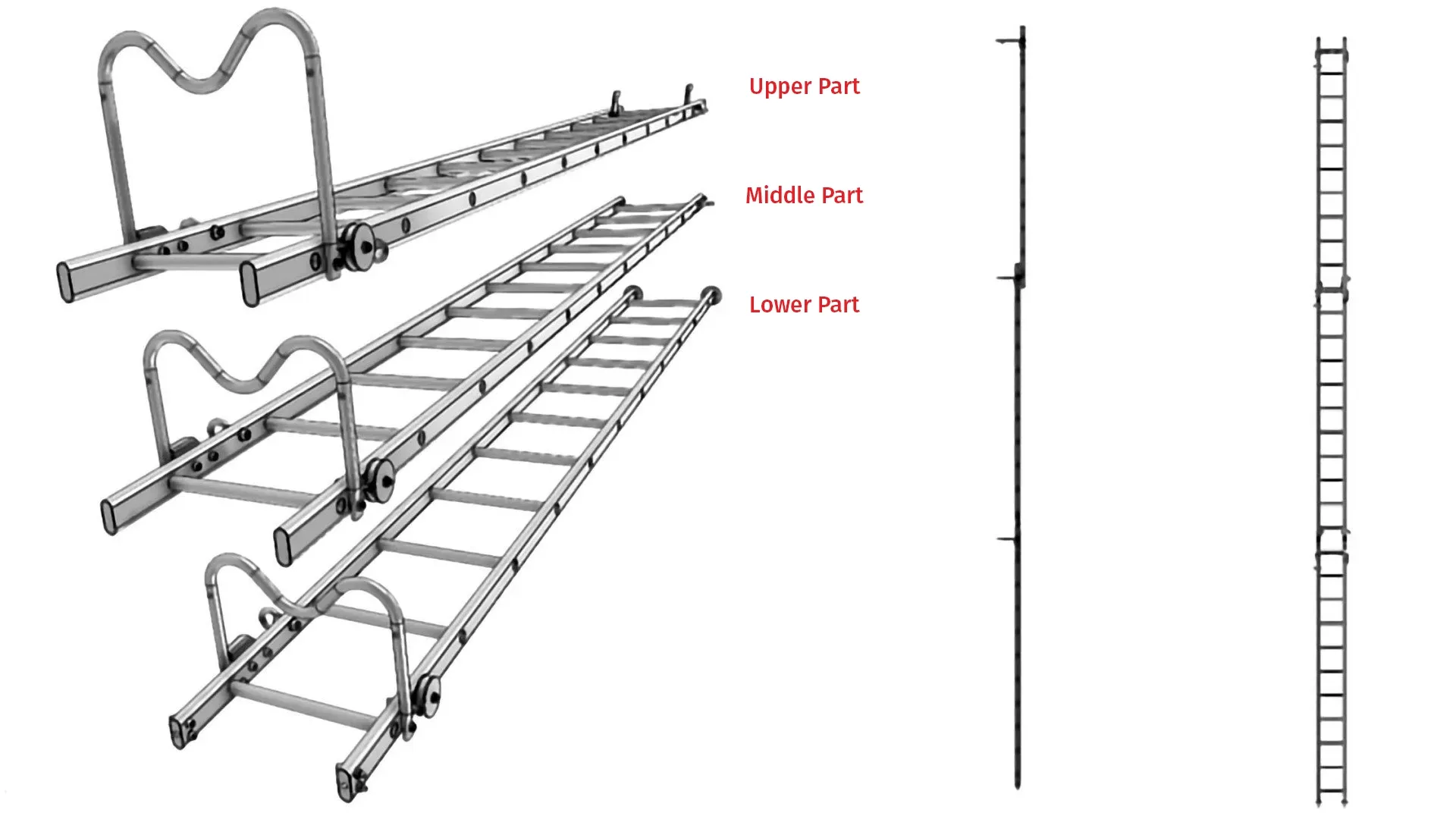

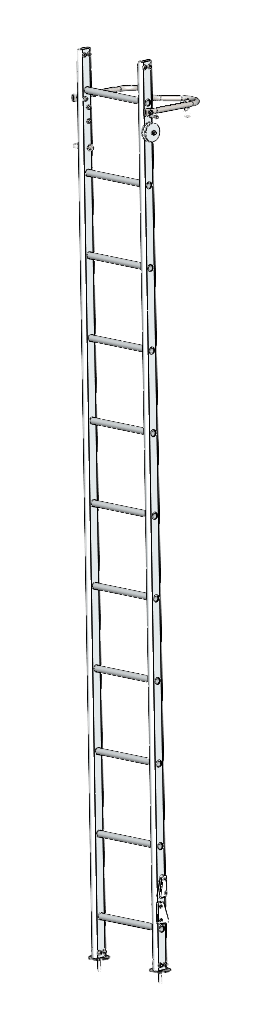

Mast ladder
Technical data & product details
ML-350-60-3300-U
| Length (mm) | 3300 |
|---|---|
| Width (mm) | 350 |
| Payload (kg) | 250 |
| Own weight (kg) | 12 |
| Optional | Special requests upon request |
ML-350-60-3300-M
| Length (mm) | 3300 |
|---|---|
| Width (mm) | 350 |
| Payload (kg) | 250 |
| Own weight (kg) | 12 |
| Optional | Special requests upon request |
ML-350-60-3300-O
| Length (mm) | 3300 |
|---|---|
| Width (mm) | 350 |
| Payload (kg) | 250 |
| Own weight (kg) | 12 |
| Optional | Special requests upon request |
Product features
- Due to quick assembly and safe climbing protection
- Highest working safety due to double stile ladder
- Low-wear attachment to the mast by means of special anchoring equipment (braided line and mast bracket with anchoring block)
- High flexibility in terms of height (max. 20,00 m) and mast diameter (ø 140 to 1.000 mm)
- The erection time (mast stick time) for one 15,00 m long masts is approx. 10 minutes
- Maximum total load 150 kg per ladder system / set
- Rung-rail connection through high-strength quality flanging
- The double spar design allows easy transport, stacking and storage of the modules
