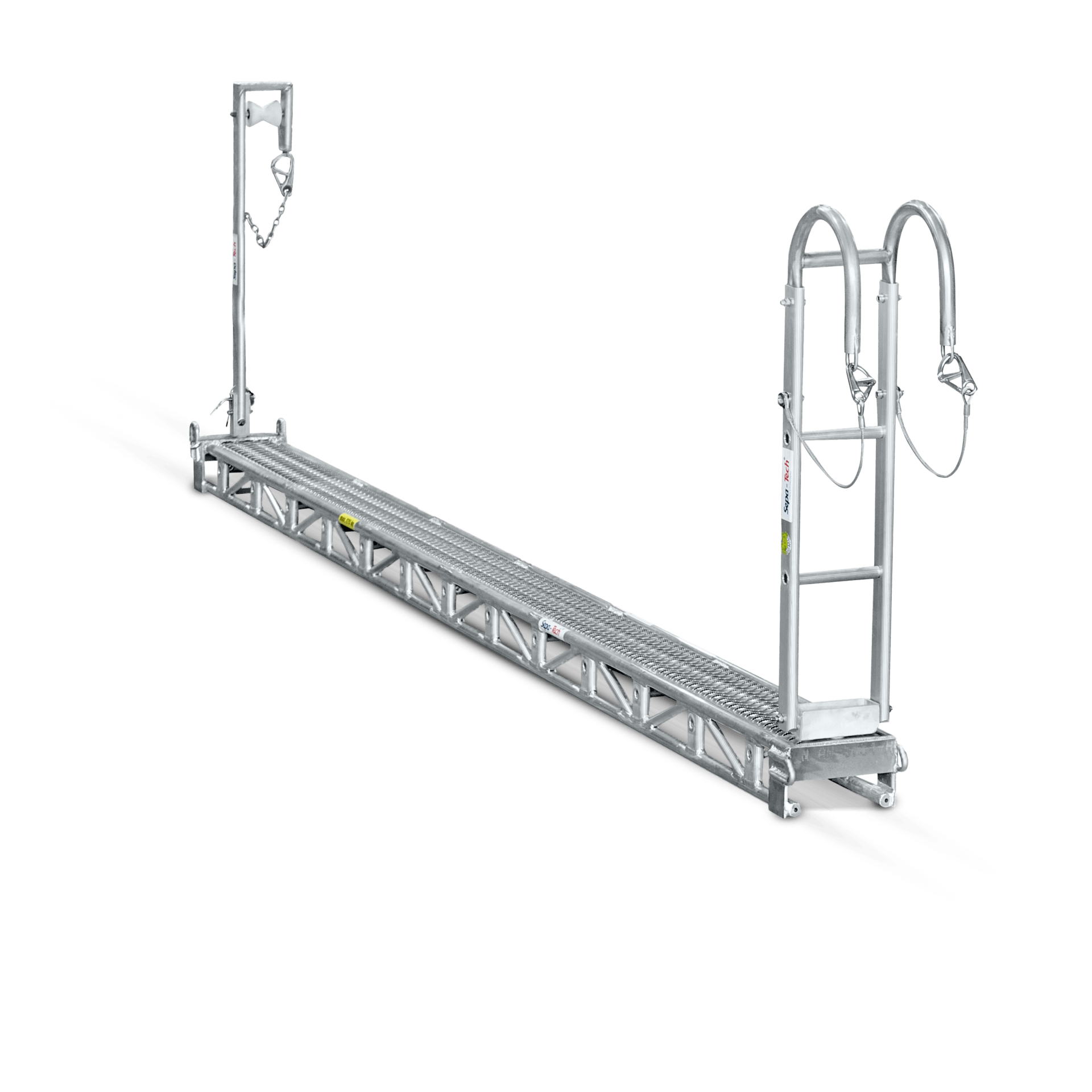

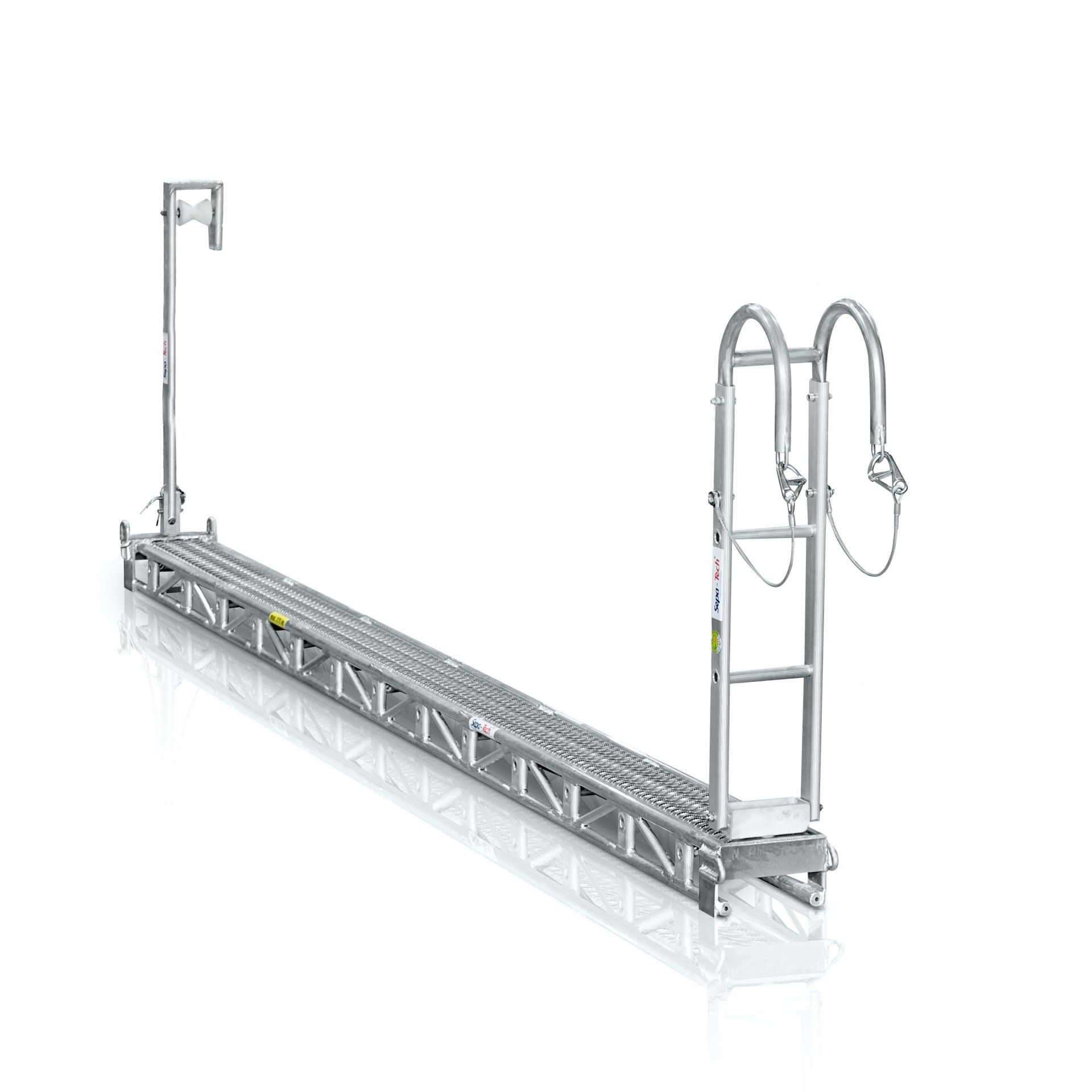

Working platform
light version
Technical data & product details
AB-U-250-160-3000
| Length (mm) | 3000 |
|---|---|
| Elements | 1 |
| Tread (width in mm) | 250 |
| Stage height (mm) | 160 |
| Payload (kg) | 275 |
| Own weight (kg) | 23,5 |
AB-U-250-160-4500
| Length (mm) | 4500 |
|---|---|
| Elements | 1 |
| Tread (width in mm) | 250 |
| Stage height (mm) | 160 |
| Payload (kg) | 275 |
| Own weight (kg) | 35 |
AB-U-250-160-5000
| Length (mm) | 5000 |
|---|---|
| Elements | 1 |
| Tread (width in mm) | 250 |
| Stage height (mm) | 160 |
| Payload (kg) | 275 |
| Own weight (kg) | 39 |
AB-U-250-160-10000
| Length (mm) | 10000 |
|---|---|
| Elements | 2 |
| Tread (width in mm) | 250 |
| Stage height (mm) | 160 |
| Payload (kg) | 275 |
| Own weight (kg) | 70 |
Extendable up to max. 13,5 m / upon request
Mast side

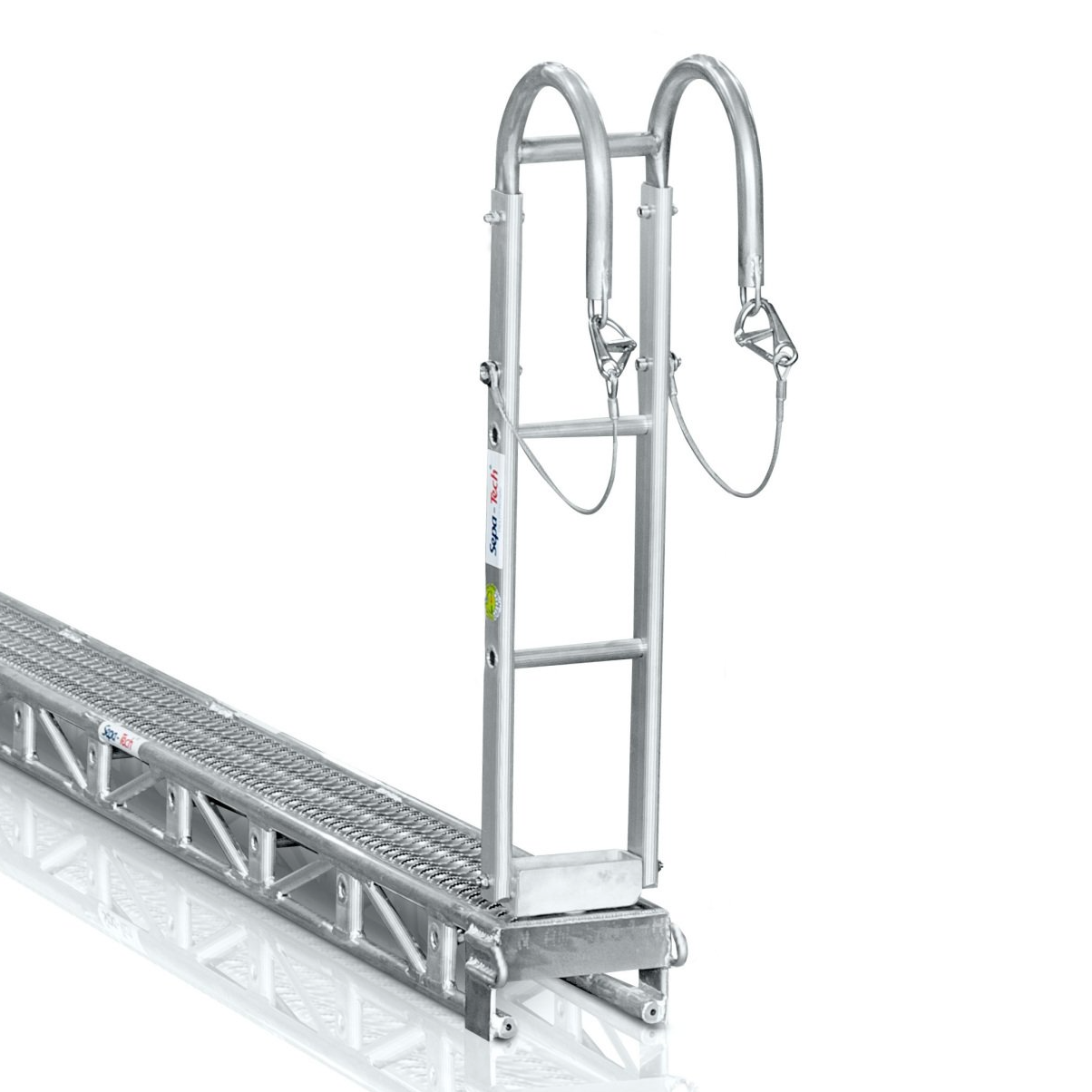

Small ladder: Rotatable and foldable safety rope with carabiner
Rope side

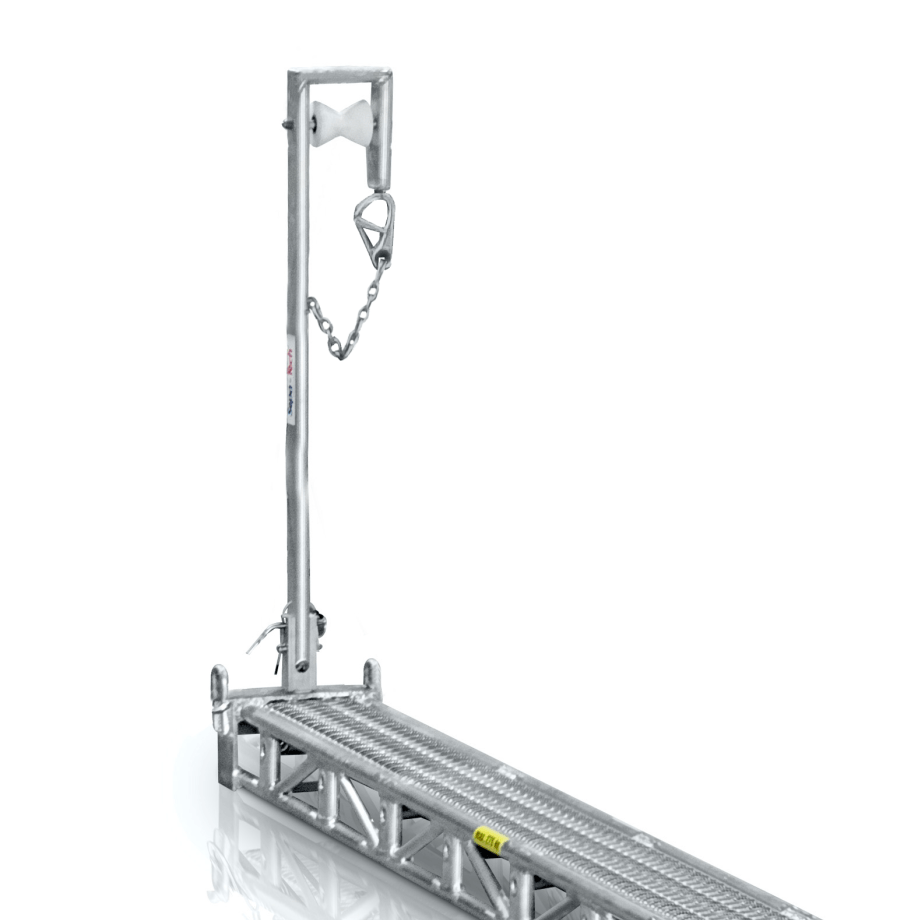

Aluminium hanger: Swiveling and foldable
Plastic roller or double rocker
Product features
- For horizontal use on the mast
- (Working platform made of aluminum tubes with central suspension device)
- Anchorage points at both ends
- Anchorage point for TSG provided as standard
- Aluminum box construction
