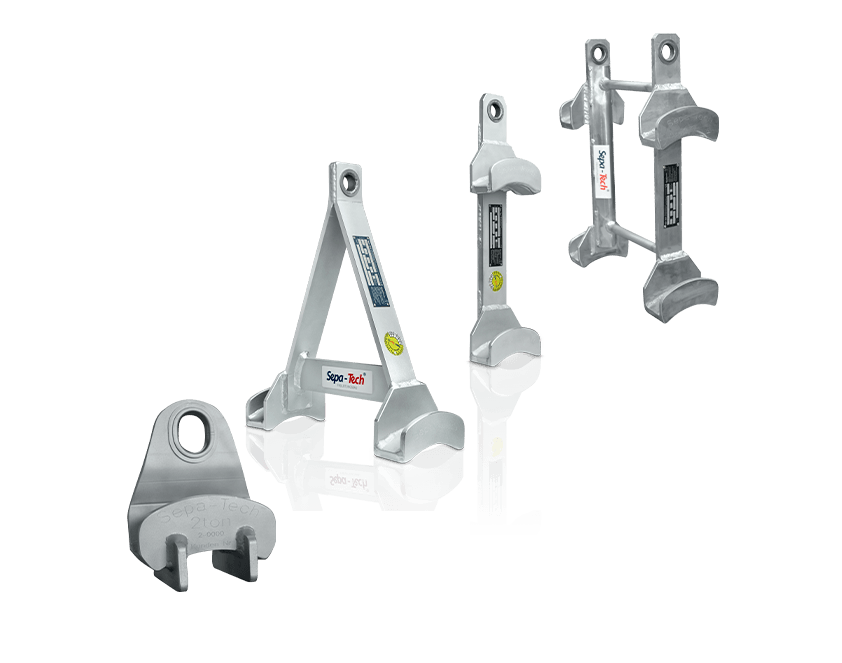

Cable lifter
Technical data & product details

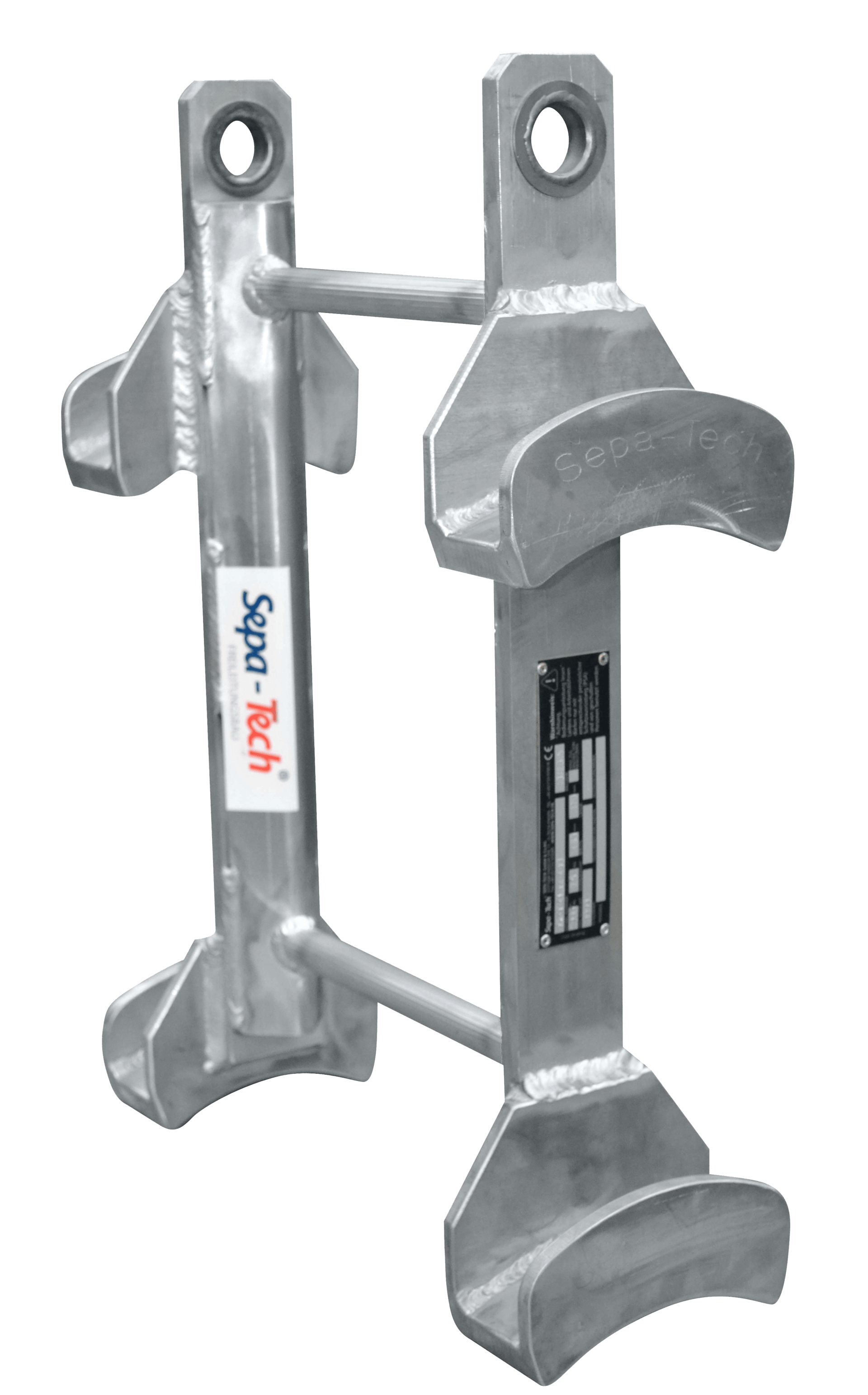

AH-T-4fach-400
| Pocket opening (mm) | 45 |
|---|---|
| Rope spacing (mm) | 400 |
| Breaking load (kg) | 4400 |
| Payload (kg) | 2000 |
| Own weight (kg) | 9,5 |

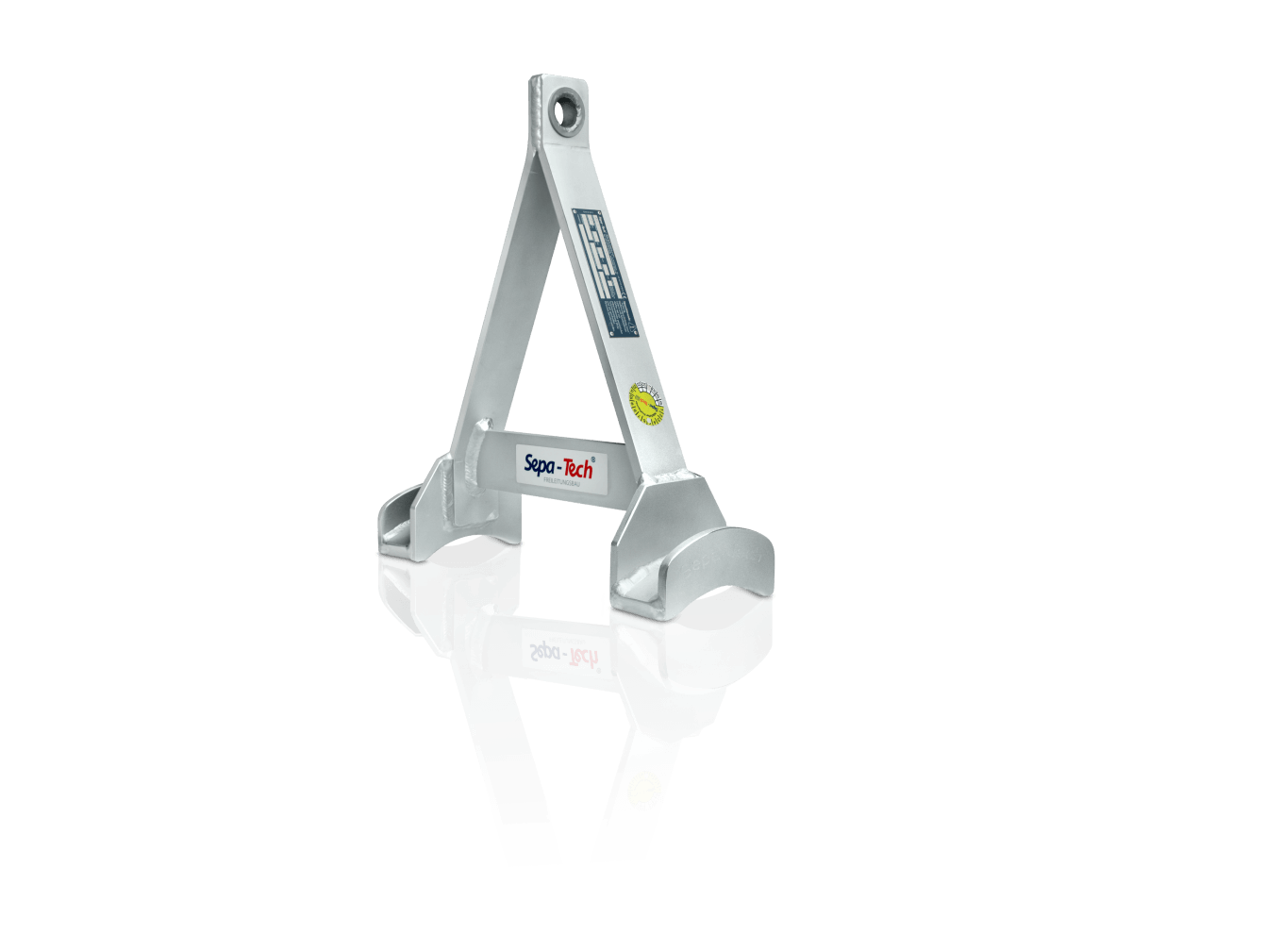

AH-T-2x-horizontal
| Pocket opening (mm) | 45 |
|---|---|
| Rope spacing (mm) | 400 |
| Breaking load (kg) | 4400 |
| Payload (kg) | 2000 |
| Own weight (kg) | 4,8 |

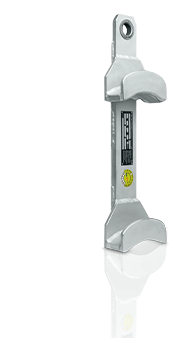

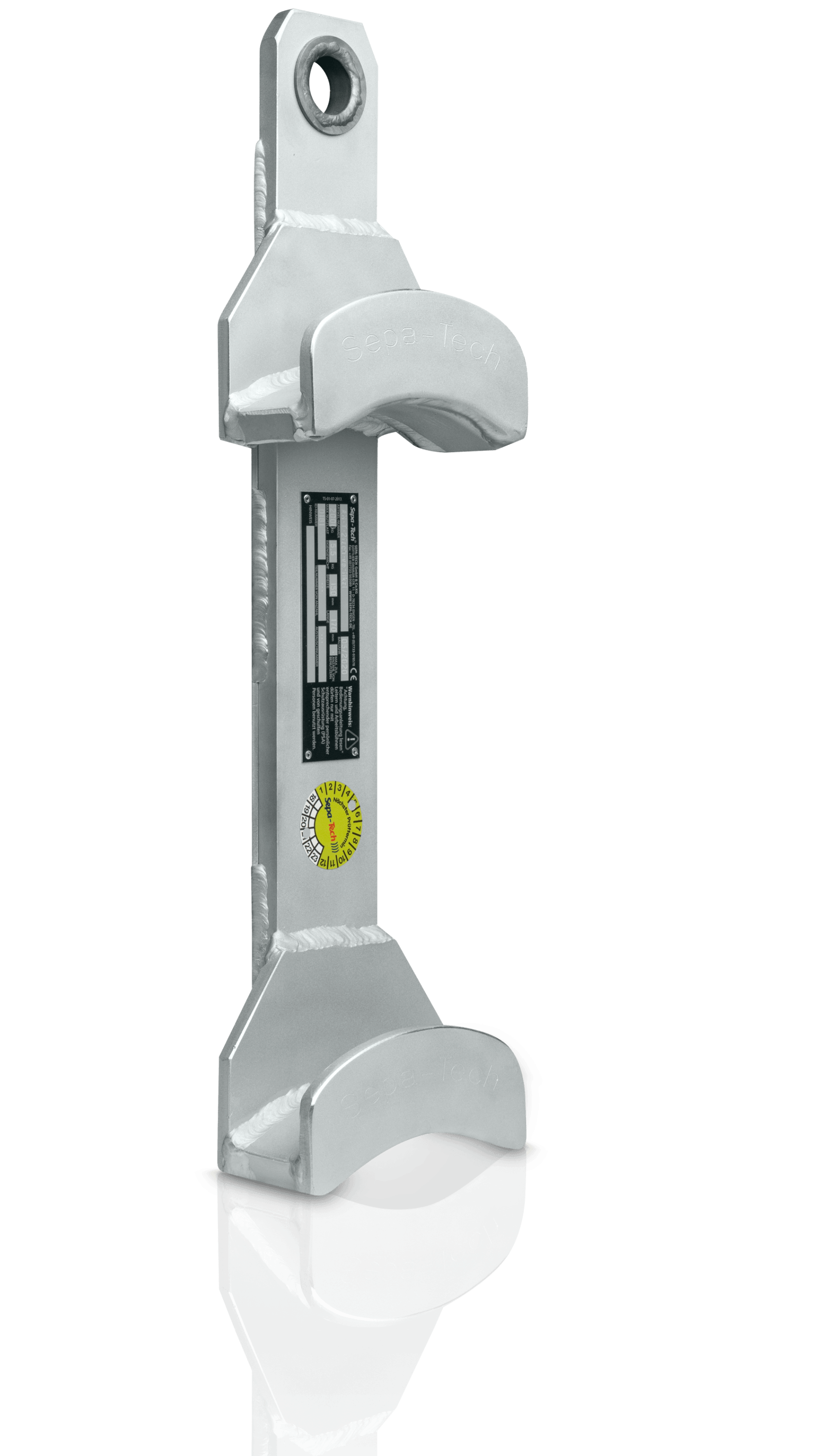

AH-T-2-fold vertical
| Pocket opening (mm) | 45 |
|---|---|
| Rope spacing (mm) | 400 |
| Breaking load (kg) | 4400 |
| Payload (kg) | 2000 |
| Own weight (kg) | 5,0 |

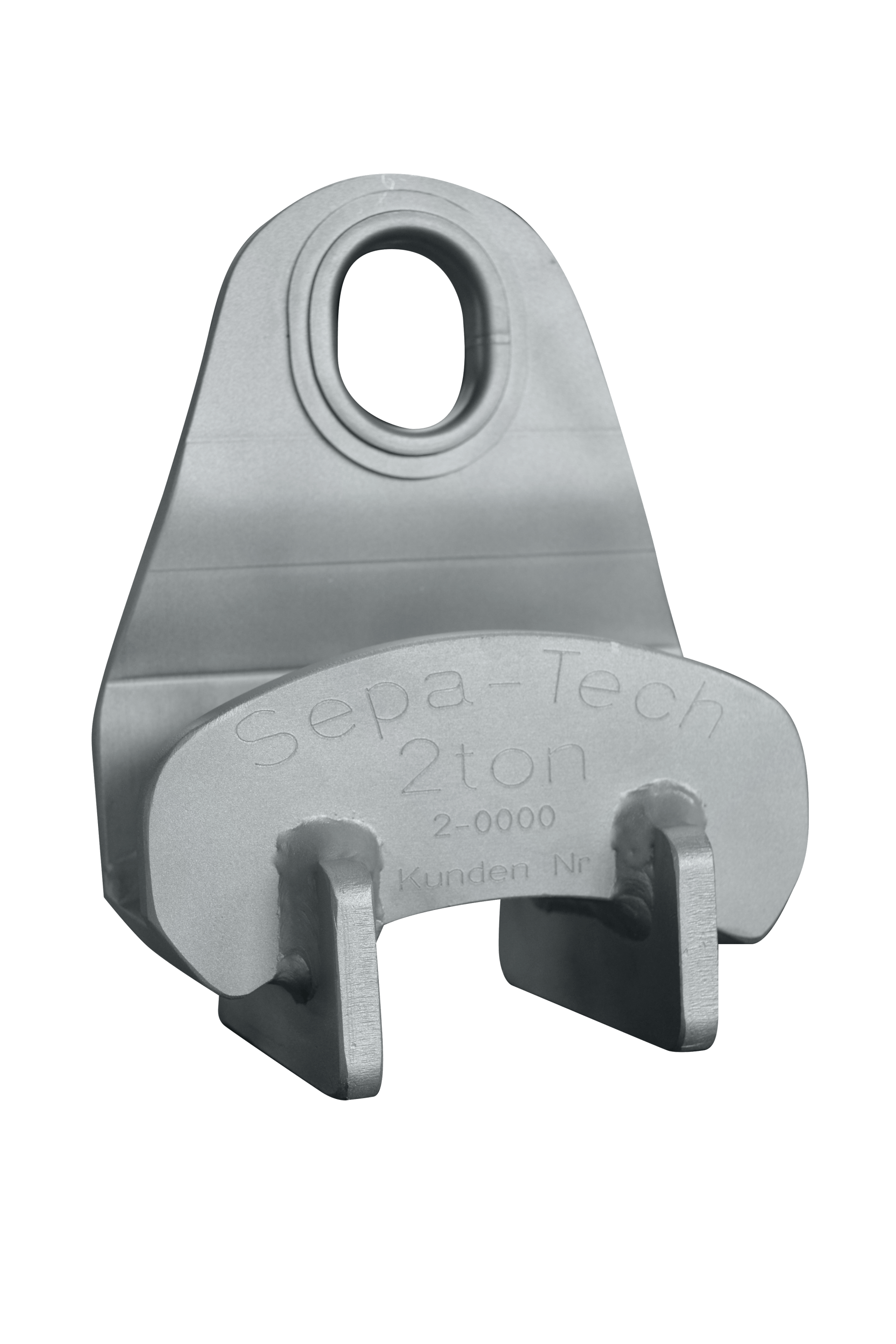

AH-T-2000
| Pocket opening (mm) | 45 |
|---|---|
| Width (mm) | 170 |
| Total height (mm) | 220 |
| Breaking load (kg) | 5000 |
| Payload (kg) | 2000 |
| Own weight (kg) | 1,8 |
AH-T-2000-G
| Pocket opening (mm) | 35 |
|---|---|
| Width (mm) | 170 |
| Total height (mm) | 220 |
| Breaking load (kg) | 5000 |
| Payload (kg) | 2000 |
| Own weight (kg) | 2,0 |
AH-T-4000
| Pocket opening (mm) | 45 |
|---|---|
| Width (mm) | 170 |
| Total height (mm) | 220 |
| Breaking load (kg) | 11000 |
| Payload (kg) | 4000 |
| Own weight (kg) | 2,2 |
AH-T-4000-G
| Pocket opening (mm) | 35 |
|---|---|
| Width (mm) | 170 |
| Total height (mm) | 220 |
| Breaking load (kg) | 11000 |
| Payload (kg) | 4000 |
| Own weight (kg) | 2,3 |
Optionally, all conduction lifters are available with rubber inserts
Product features
- Aluminium construction
- Various models depending on bundle type or single conductor
- Stainless steel eyelet for increased stability
