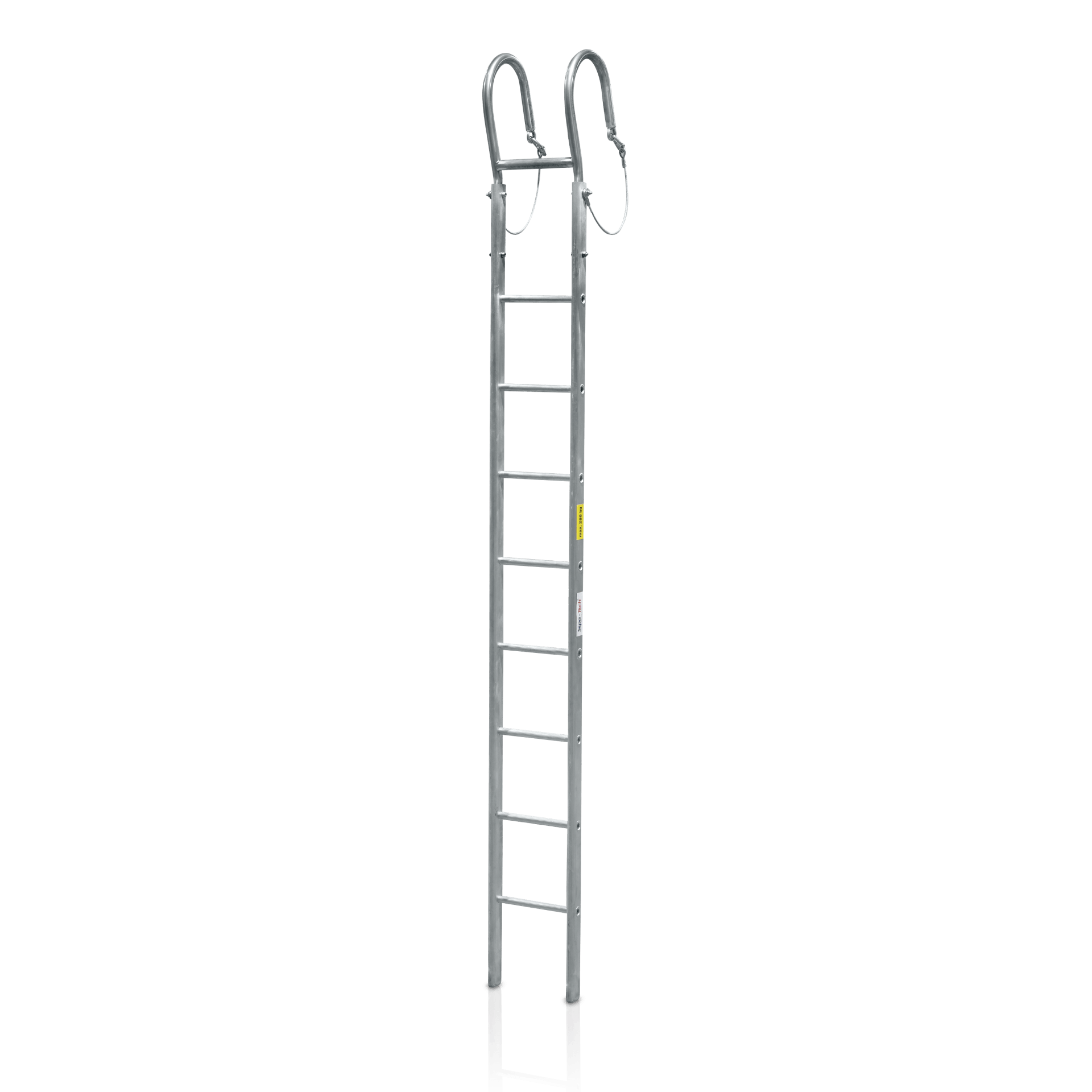

Pylon Suspension Ladder

Technical data & product details

SM-HL-340-60-3000

Length (mm) 3000
Width (mm) 340
Elements 1-piece
Max. load hanging (kg) 250
Max. Load at 65°-89° (kg) 250
Own weight (kg) 11

SM-HL-340-60-4500

Length (mm) 4500
Width (mm) 340
Elements 1-piece
Max. load hanging (kg) 250
Max. Load at 65°-89° (kg) 250
Own weight (kg) 18

SM-HL-340-60-5000

Length (mm) 5000
Width (mm) 340
Elements 1-piece
Max. load hanging (kg) 250
Max. Load at 65°-89° (kg) 250
Own weight (kg) 20

SM- HL-340-60-6000

Length (mm) 6000
Width (mm) 340
Elements 1-piece
Max. load hanging (kg) 250
Max. Load at 65°-89° (kg) 250
Own weight (kg) 22

SM-HL-340-60-7000

Length (mm) 7000
Width (mm) 340
Elements 1-piece
Max. load hanging (kg) 250
Max. Load at 65°-89° (kg) 125
Own weight (kg) 25

SM-HL-340-60-9000

Length (mm) 9000
Width (mm) 340
Elements 2-piece
Max. load hanging (kg) 250
Max. Load at 65°-89° (kg) 125
Own weight (kg) 36

SM-HL-340-60-14000

Length (mm) 14000
Width (mm) 340
Elements 2-piece
Max. load hanging (kg) 250
Max. Load at 65°-89° (kg) Nicht zulässig
Own weight (kg) 50

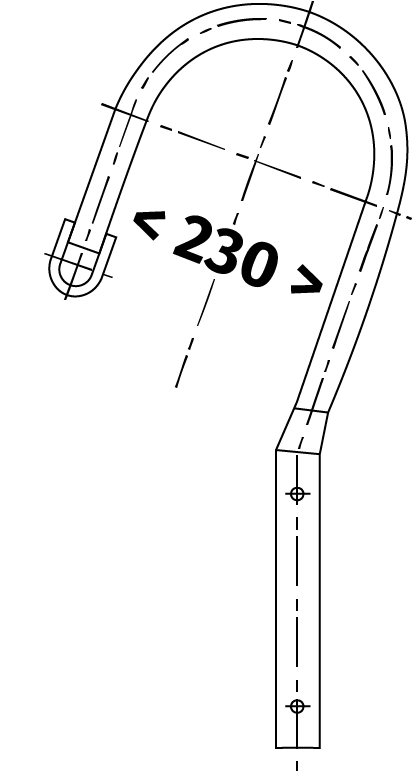

Form A

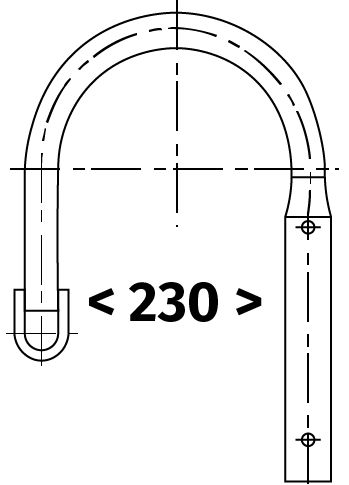

Form B

Form C

Product features

The current mast suspension ladder can also be used as a mast access ladder for the first ascent.

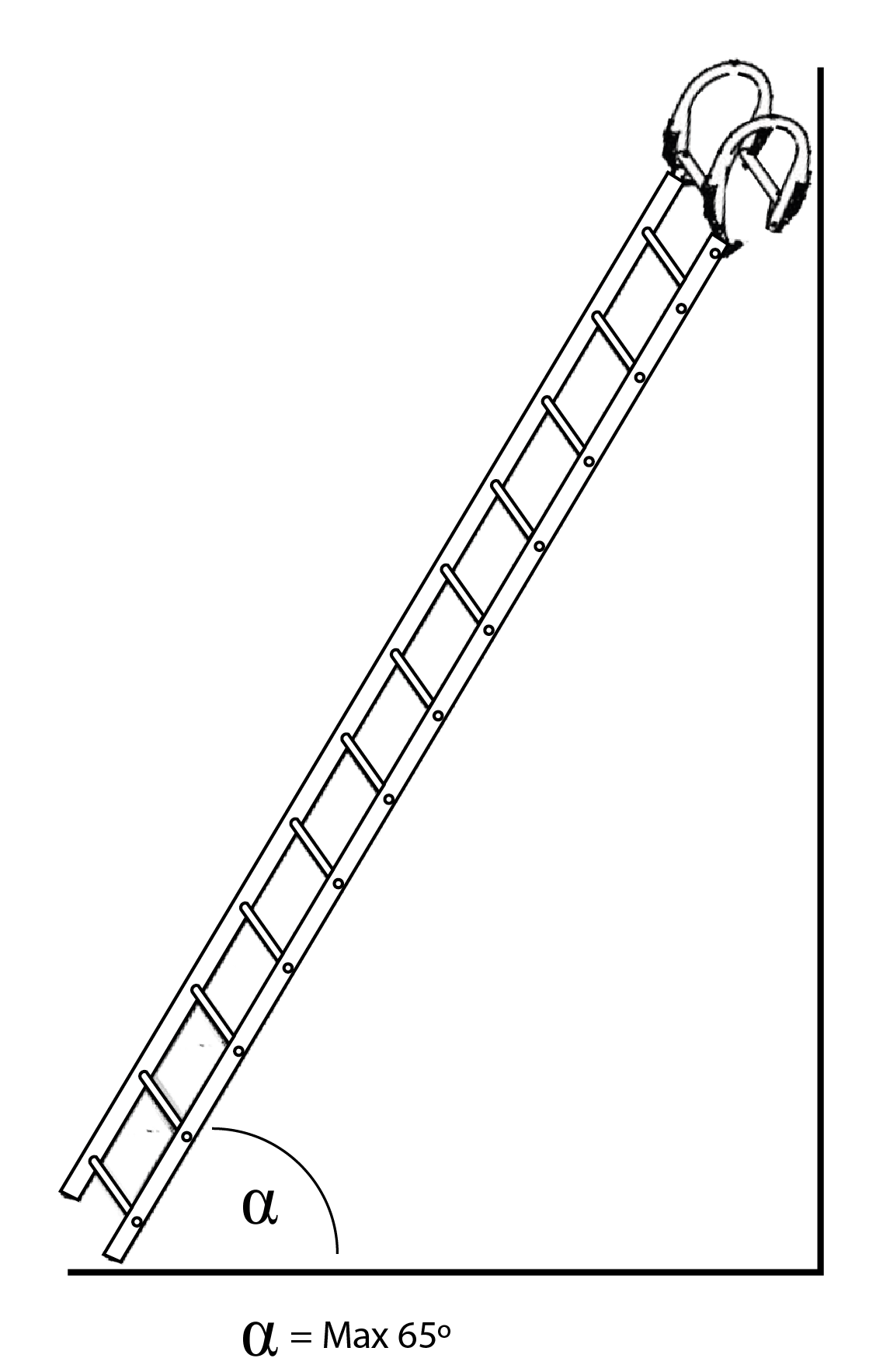

In this case, the max. bracing angle of 65° must not be exceeded. The stirrup safety device must be used, i.e. after the first ascent, the stirrup safety device must be closed as a fall protection device and opened again during the descent before the ladder is removed. In this way, the ladder can be safely removed from the mast.
