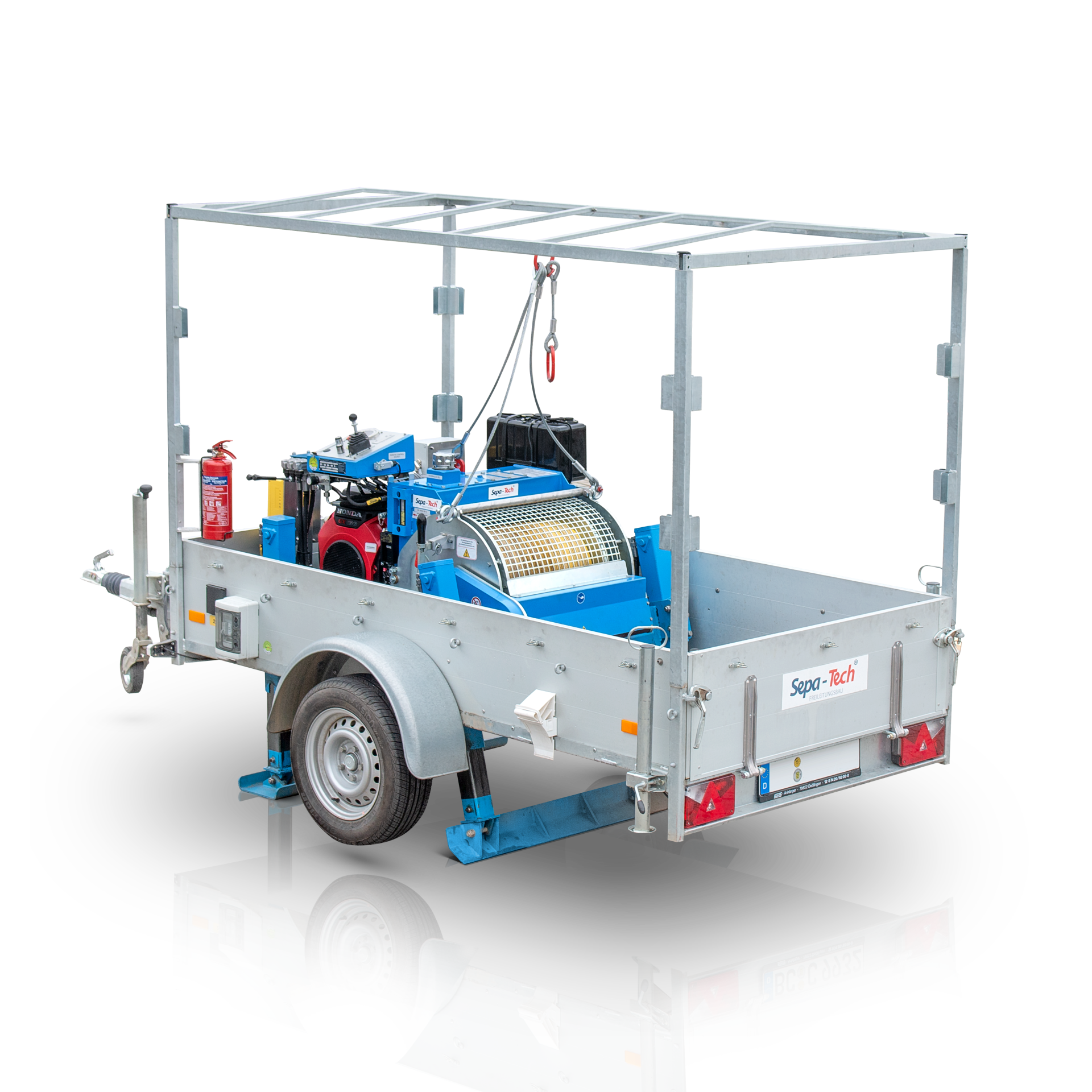

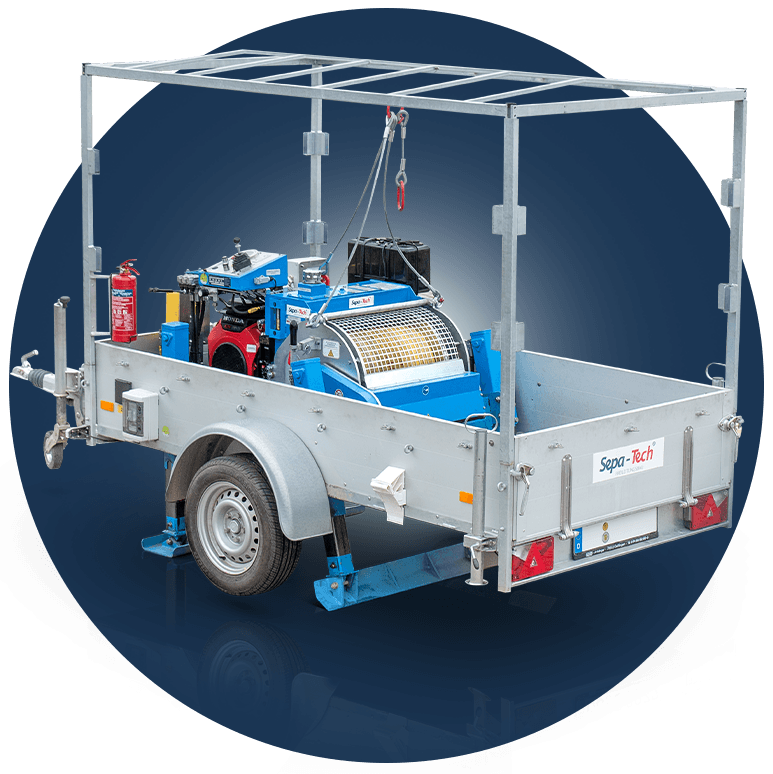

Cable winch
Technical data & product details
SW15KN-001
| Article number | SW15KN-001 |
|---|---|
| Max. Tractive force | 15 KN |
| Max. Speed Km/h | ca. 3 |
| Length x width x height m | 2,6 x 1,35 x 2,5 |
| Weight kg | 900 |
| Motor | Honda GX 630 14 KW |
Product features
- 1-axle suspension, brake, lighting and mudguards for up to 100 km/h
- Support through robust hydraulic mountain support at the front and rear
- Automatic rope spooler
- Lockable aluminium cladding (chequer plate)
- Large rope drum with stable pressure roller for fixing the
rope
- 4-stroke petrol engine with speed control 14 kW (19.1hp)
- The engines comply with the world‘s strictest exhaust
regulations
- Low fuel and oil consumption
- Foldable transport support for safe transport and relieving the load on the axle

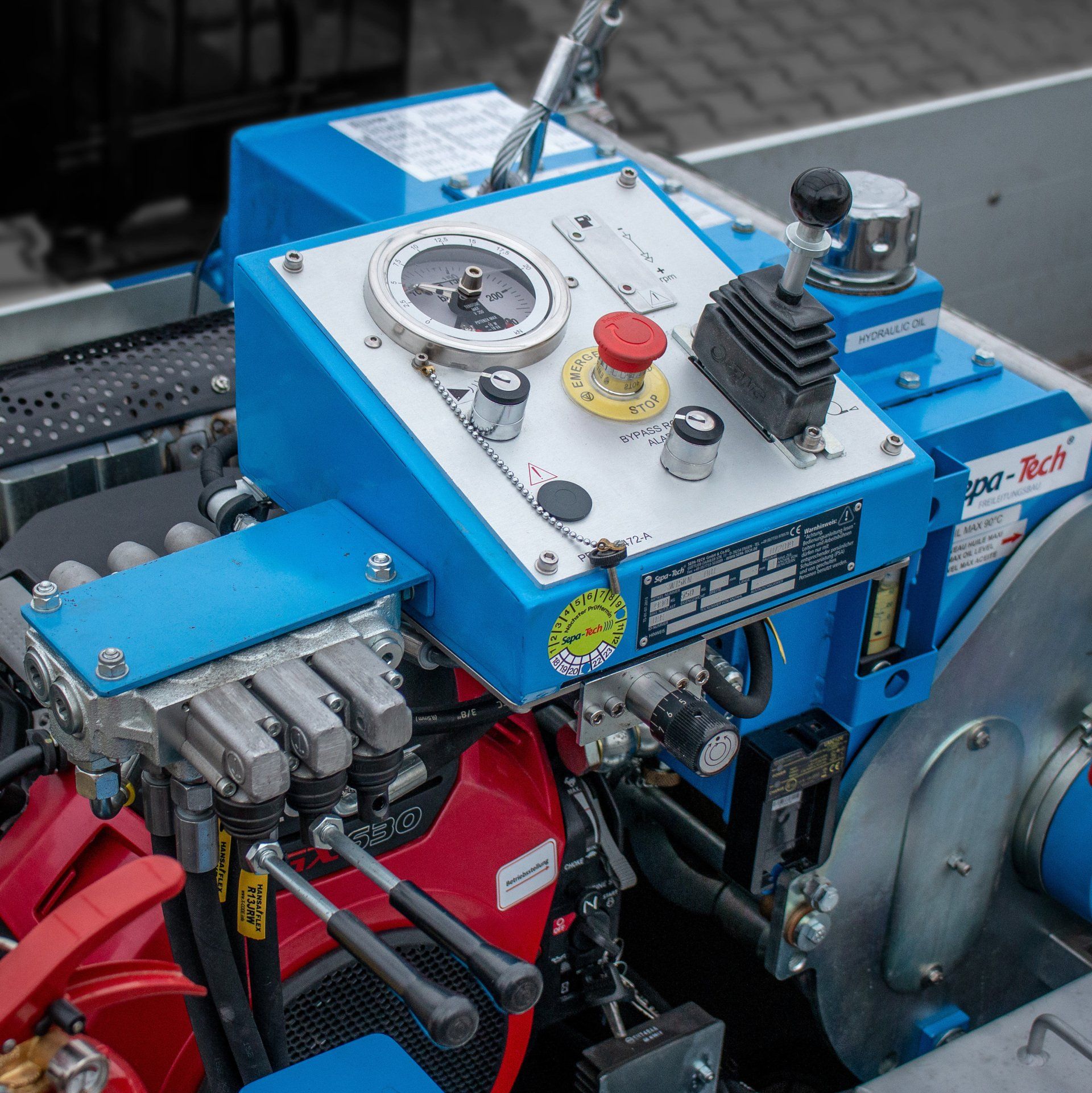

- Radio remote control
- Release device for manual extraction of the rope without
motor
- Slack rope safety device (only for steel rope)
- Underbody guard
- Spare wheel with bracket
- Lockable toolbox
- Earthing grid with bracket including 3 m copper cable 50 mm²
- Biodegradable hydraulic oil
- Rope in different versions (steel or man-made fibre)
- Sound insulation, reduction by approx. DB10
- Cladding made of aluminium smooth sheet according to RAL colour chart
